TX60

Toyota CHASER · 1980 · 4,323 parts · 171 categories
TX60 ×

← Back to categories

4,323 items

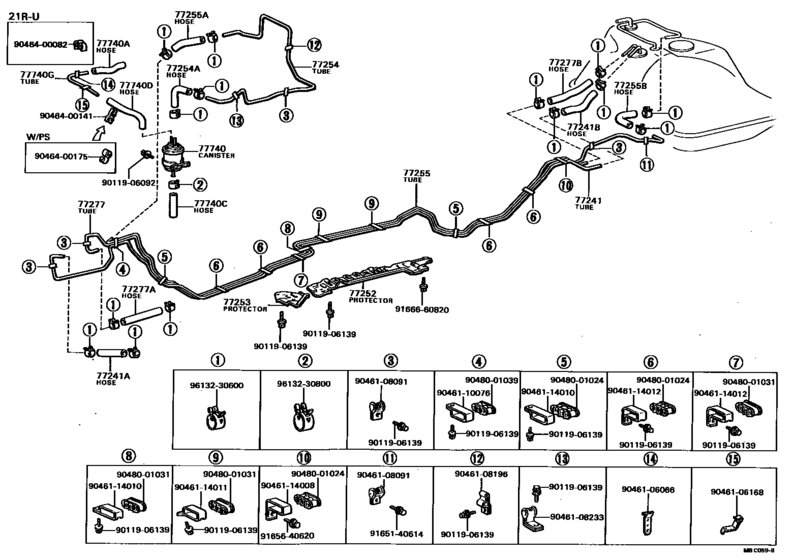

Fuel Tank & Tube ([09.1980 - 08.1982] (8009-8208)RX60,TX60) 46
#OEMPart name
77241 77251-22201 Tube, Fuel Main, No.1
77241 77251-22370 Tube, Fuel Main, No.1
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77241 95332-06030 Hose(For Carburetor)
77241 95333-06030 Hose, Fuel
77252 77266-22030 Protector, Fuel Tube
77253 77267-22020 Protector, Fuel Tube, No.2
77254 77261-22040 Tube, Fuel Emission, No.1
77255 77263-22041 Tube, Fuel Emission, No.2
77277 77255-22101 Tube, Fuel Return, No.1
77277 77255-22260 Tube, Fuel Return, No.1
77740 77740-22170 Canister Assy, Charcoal
77740 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
77740 90999-92003 Hose, Breather (For Transfer Case)
77740 95332-08020 Hose, Fuel Pipe, No.1
77740 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77740 23818-25012 Tube, Fuel, No.2(For Charcoal Canister)
9011906092 90119-06092 New Genuine Part
9011906092 90119-06699 BOLT WWASHER
9011906139 90119-06139 New Genuine Part
9011906139 91651-40614 Bolt
9046106066 90461-06066 New Genuine Part
9046106168 90461-06168 New Genuine Part
9046108091 90461-08091 New Genuine Part
9046108196 90461-08196 New Genuine Part
9046108233 90461-08233 New Genuine Part
9046110076 90461-10076 New Genuine Part
9046114008 90461-14008 New Genuine Part
9046114010 90461-14010 New Genuine Part
9046114011 90461-14011 New Genuine Part
9046114012 90461-14012 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400141 90464-00141 New Genuine Part
9046400175 90464-00175 New Genuine Part
9048001024 90480-01024 New Genuine Part
9048001031 90480-01031 New Genuine Part
9048001039 90480-01039 New Genuine Part
9165640620 91656-40620 Bolt(For Oil Receiver Pipe)
9165640620 91651-60618 Bolt(For Oil Receiver Pipe)
9166660820 91666-60820 New Genuine Part
9166660820 91661-60816 Bolt
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
