TX60

Toyota CHASER · 1980 · 4,323 parts · 171 categories
TX60 ×

← Back to categories

4,323 items

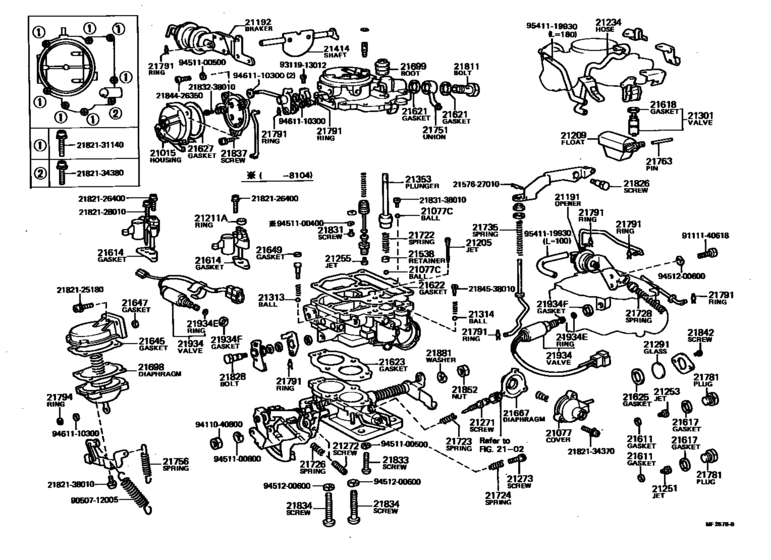

Carburetor ([09.1980 - 08.1982] (8009-8208)13TU..4F) 101
#OEMPart name
21015 21015-18130 Housing Sub-Assy, Coil
21077 21077-26350 Cover(For Auxiliary Acceleration Pump)
21077 21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)
21191 21191-18040 Opener
21192 21192-18131 Breaker
21205 21205-25200 Jet Sub-Assy, Slow
21209 21209-15020 Float Sub-Assy
21211 21659-38110 Ring(For Small Venturi)
21234 21234-18080 Pipe Or Hose
21234 90999-92002 Air Hose (300 mm)
21251 90999-41103 Jet, 1St Main
21253 90999-42156 Jet, 2Nd Main
21255 90999-43047 Jet, Power
21271 21271-25201 Screw, Idle Adjusting
21271 21271-15230 Screw, Idle Adjusting
21272 21828-25180 Screw, 1St Idle Adjusting
21273 21844-33010 Screw, 1St Idle Adjusting
21291 21291-60200 Glass, Level Gage
21301 21301-15020 Valve Sub-Assy, Needle
21313 21313-11020 Ball, Steel, No.1(For Discharge Weight)
21353 21353-33010 Plunger, Pump
21353 21353-16510 Plunger, Pump
21414 21054-26401 Shaft, Choke
21538 21538-31010 Retainer, Ball Check
21611 21611-22010 Gasket, Main Jet
21614 21614-33010 Gasket, Venturi
21614 21614-16280 Gasket, Venturi
21614 21614-33080 Gasket, Venturi
21614 21615-16280 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-26510 Gasket, Air Horn
21622 21622-15310 Gasket, Air Horn
21623 21623-25180 Gasket, Body Flange
21623 21623-16280 Gasket, Body Flange
21625 21655-60200 Gasket, Level Gage
21627 21627-28090 Gasket, Coil Housing
21627 21627-28150 Gasket, Coil Housing
21645 21645-33080 Gasket, Diaphragm, Cap
21645 21645-41010 Gasket, Diaphragm, Cap
21647 21649-33080 Gasket, Diaphragm Housing Cap
21649 21655-11040 Ring, O(For Pump Jet)
21667 21667-38011 Diaphragm
21667 21675-35330 Diaphragm
21667 21667-38310 Diaphragm
21667 21675-35510 Diaphragm
21698 21669-25010 Diaphragm
21699 21699-28150 Boot(For Pump Plunger)
21722 21722-22010 Spring, Pump Damping
21723 21723-21030 Spring, Idle Adjusting
21728 21756-25181 Spring, Throttle Valve Return
21735 21735-18060 Spring, Pump Arm
21751 21894-26350 Union, Nipple
21756 21756-33080 Spring, Back(For Throttle Shaft)
21763 21763-26350 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21781 21781-30020 Plug, Main Passage(For Carburetor Jet)
21781 21781-16510 Plug, Main Passage(For Carburetor Jet)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21794 21794-40070 Ring, Retainer, No.1(For Throttle Shaft)
21811 21811-11060 Bolt, Union Nipple
21826 21826-31012 Screw, Pump Arm Set
21828 21845-26400 Screw, 1St Idle Set
21831 21821-15060 Screw, 2Nd Throttle Valve Set
21831 21842-33010 Screw, Power Piston Stop
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21834 21844-26400 Screw, Set(For 1St Idle Cam Follower Set)
21837 21821-25010 Screw, Coil Housing Set
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-18040 Solenoid, Throttle Valve
21934 21072-26800 Solenoid, Throttle Valve
21934 21062-16011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2157627010 21576-27010 Clip, Pump Strainer
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182126400 21821-26400 Screw, 2nd Throttle Valve Set
2182128010 21821-28010 Screw, 2nd Throttle Valve Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2182134370 21821-34370 Screw, 2nd Throttle Valve Set
2182134380 21821-34380 Screw, 2nd Throttle Valve Set
2182138010 21821-38010 Screw, 2nd Throttle Valve Set
2183138010 21831-38010 Screw, Power Piston Stop
2183238010 21832-38010 Screw, Thermostat Case Set
2184426350 21844-26350 Screw, Thermostat Case Set
2184538010 21845-38010 Screw, 1St Idle Set
9050712005 90507-12005 New Genuine Part
9111140618 91111-40618 New Genuine Part
9111140618 91111-50618 New Genuine Part
9311913012 93119-13012 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100400 94511-00400 WASHERSPRING
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9541119930 95411-19930 Hose(For Carburetor To Manifold)
