Search › Model › TX50
TX50

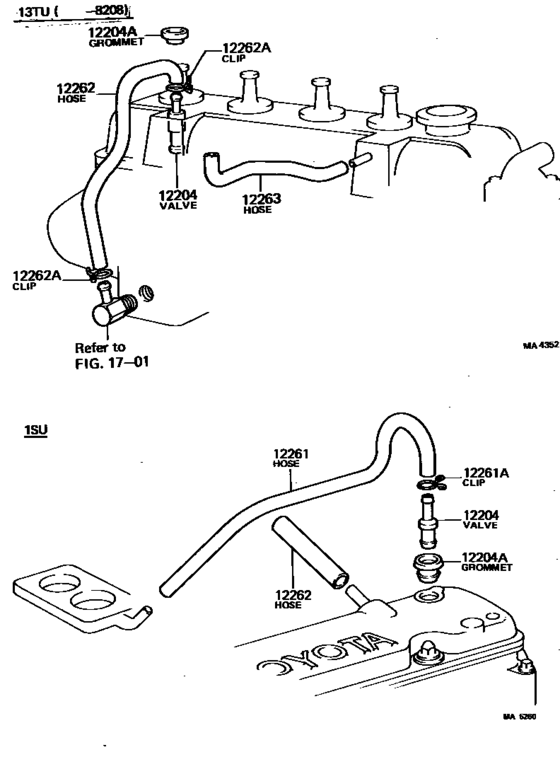

Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-15020 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-28010 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18180 | Grommet(For Ventilation System) |
| 12262 | 12261-25012 | Hose, Ventilation, No.2 |
| 12262 | 90467-16010 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 90445-20012 | Hose, Ventilation, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 12204-15020 | Valve Sub-Assy, Ventilation | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
| 12204-28010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
| 12261-25012 | Hose, Ventilation, No.2 | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
| 90445-20012 | Hose, Ventilation, No.3 | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
| 90467-16010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
| 90480-18180 | Grommet(For Ventilation System) | Ventilation Hose ([03.1980 - ] MA4352,MA5260 (8003- )13TU) |
