Search › Model › TX50

TX50

Toyota CRESTA · 1980 · 4,439 parts · 165 categories
TX50 ×

← Back to categories

4,439 items

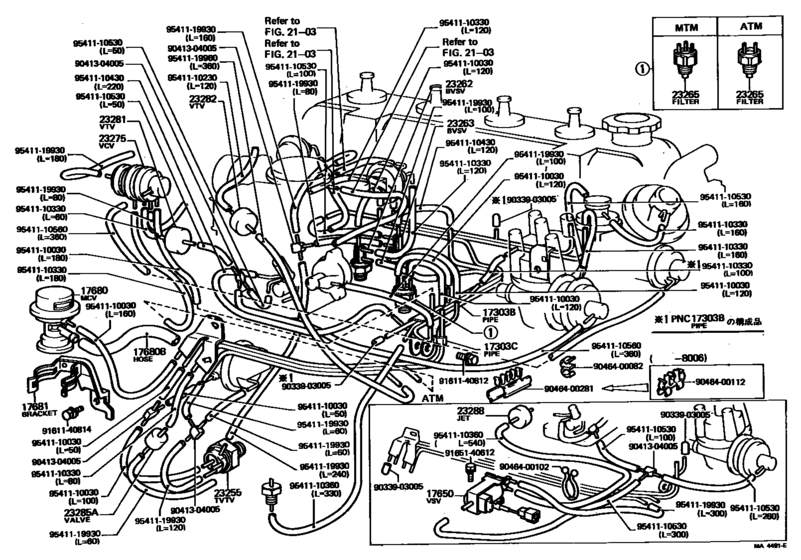

Vacuum Piping ([03.1980 - 08.1982] (8003-8208)13TU) 53
#OEMPart name
17303 17303-18031 Pipe Sub-Assy, Air, No.1
17303 17303-18051 Pipe Sub-Assy, Air, No.2
17308 17308-18010 Hose Sub-Assy, Vacuum(For Idle-Up)
17561 17561-18020 Stay(For Air Hose)
17561 90464-00267 Clamp(For Air Hose)
17630 17630-18010 Valve Assy, Air Control
17630 17630-28020 Valve Assy, Air Control
17680 17680-18020 Valve Assy, Mixture Control
17680 90445-11052 Hose, Air, No.4(For Air By-Pass Valve)
17681 17681-18030 Bracket, Mixture Control Valve
21908 21908-18010 Actuator Sub-Assy, Idle-Up
21908 21893-28080 Bracket, Idle-Up Actuator
21908 21893-28081 Bracket, Idle-Up Actuator
23255 90925-01068 Valve, Thermostatic Vacuum Transmitting, No.1
23262 25810-15010 Valve, Bimetal Vacuum Switching, No.1
23263 25810-24010 Valve, Bimetal Vacuum Switching, No.1
23263 25810-24020 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11024 Filter, Gas, No.1
23265 90917-11027 Filter, Gas, No.1
23275 90925-03095 Valve, Vacuum Control, No.1
23281 90925-01072 Valve, Vacuum Transmitting, No.1
23282 90925-01021 Valve, Vacuum Transmitting, No.1
23285 90917-10059 Valve, Check, No.1
9033903005 90339-03005 Plug, No.1
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9046114014 90461-14014 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400102 90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable)
9046400112 90464-00112 New Genuine Part
9046400281 90464-00281 New Genuine Part
9161140612 91611-40612 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612 91611-G0612 Bolt
9161140812 91611-40812 Bolt(for Drive Plate & Torque Converter Setting)
9161140812 91611-B0812 Bolt
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9338116012 93381-16012 Screw
9451119930 94511-19930 New Genuine Part
9541110030 95411-10030 Hose (For Idle Up Device)
9541110030 90999-92002 Air Hose (300 mm)
9541110095 95411-10095 Hose, Vacuum, No.6 (For Front Drive Shift)
9541110095 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
9541110230 95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift)
9541110330 95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift)
9541110360 95411-10360 Hose (For Idle Up Device)
9541110360 90999-92003 Hose, Breather (For Transfer Case)
9541110430 95411-10430 Hose (For Idle Up Device)
9541110530 95411-10530 Hose, No.1(For Opener)
9541110560 95411-10560 Hose, Vacuum, No.9 (For Heater Or Air Conditioner)
9541119930 95411-19930 Hose(For Carburetor To Manifold)
9541119960 95411-19960 Hose, Vacuum, No.2 (For Front Drive Shift)
