TT147

Toyota CORONA · 1982 · 3,663 parts · 166 categories
TT147 ×

← Back to categories

3,663 items

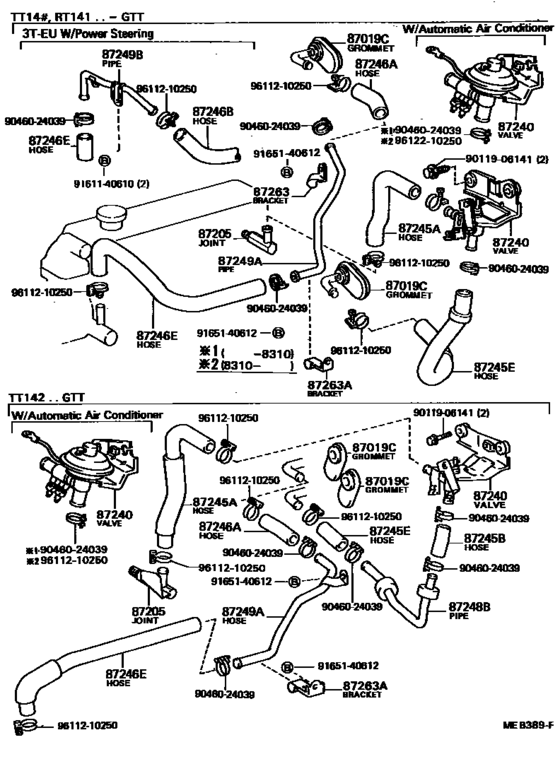

Heating & Air Conditioning - Water Piping ([01.1982 - 08.1985] (8201-8508)RT141,TT14#) 21
#OEMPart name
87019 90480-01015 Grommet, Heater Hose
87205 87251-20100 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87240 87240-14110 Valve Assy, Heater Water
87245 87245-14770 Hose, Heater Water, Inlet A
87245 87245-14740 Hose, Heater Water, Inlet E
87246 87245-1B040 Hose, Heater Water, Outlet A
87246 87245-1B050 Hose, Heater Water, Outlet E
87246 87245-32050 Hose, Heater Water, Outlet A
87249 87248-14170 Pipe, Heater Water Outlet, A
87263 87263-14050 Bracket, Heater Water Pipe, No.1
87263 87263-14060 Bracket, Heater Water Pipe, No.2
9011906141 90119-06141 New Genuine Part
9011906141 91651-40628 New Genuine Part
9046024039 90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039 90467-21010 Clip(For Ventilation Hose No.2)
9161140610 91611-40610 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161140610 91611-B0610 Bolt (For Transfer Oil Receiver No.1)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9611210250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9612210250 96122-10250 New Genuine Part
