TT147

Toyota CORONA · 1982 · 3,663 parts · 166 categories
TT147 ×

← Back to categories

3,663 items

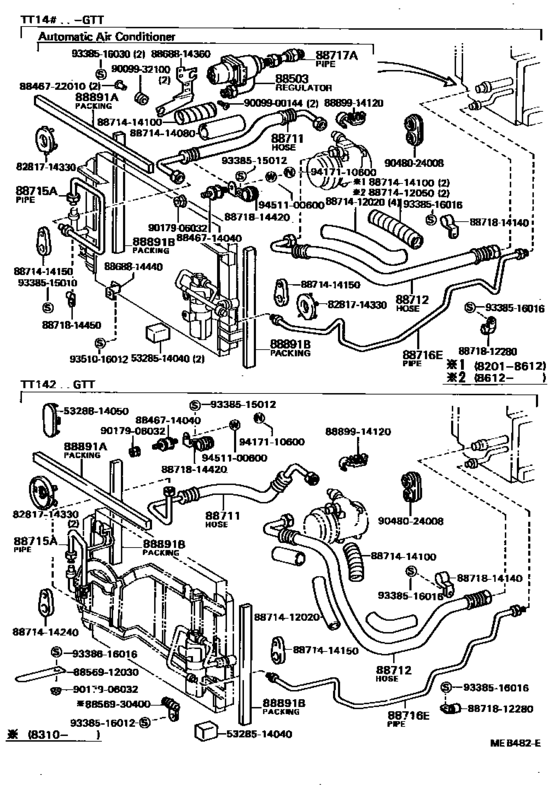

Heating & Air Conditioning - Cooler Piping ([01.1982 - 08.1985] (8201-8508)TT14#) 43
#OEMPart name
88711 88711-14420 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-14730 Hose, Cooler Refrigerant Suction, No.1
88715 88715-14130 Pipe, Cooler Refrigerant Discharge, A
88716 88716-14760 Pipe, Cooler Refrigerant Liquid, C
88891 53293-14040 Deflector, Radiator Upper Air
88891 53291-14020 Seal, Radiator Support To Frame
5328514040 53285-14040 Cover, Front Bumper Arm Hole
5328814050 53288-14050 Cover, Power Steering Pipe Hole
8281714330 82817-14330 Protector, Wiring Harness, No.1
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8856912030 88569-12030 Clamp (For Cooler Wiring Harness), No.1
8856930400 88569-30400 Clamp (for Cooler Relay)
8868814360 88688-14360 Bracket, Cooler Diaphragm
8868814440 88688-14440 Bracket, Cooler Diaphragm
8871412020 88714-12020 Insulator, Cooler Refrigerant Hose, No.4
8871412020 87173-36040 Insulator, Cooler Refrigerant Hose, No.4
8871412050 88714-12050 Insulator, Cooler Refrigerant Hose, No.1
8871414080 88714-14080 Insulator, Cooler Refrigerant Hose, No.2
8871414080 88714-24020 Insulator, Cooler Refrigerant Hose, No.1
8871414100 88714-14100 Insulator, Cooler Refrigerant Hose, No.2
8871414150 88714-14150 Hose, Cooler Refrigerant Liquid, No.1
8871414240 88714-14240 Hose, Cooler Refrigerant Liquid, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871814140 88718-14140 Pipe, Cooler Refrigerant Suction, No.2
8871814420 88718-14420 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8889914120 88899-14120 Cover, Evaporator
9009900144 90099-00144 New Genuine Part
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338515012 93385-15012 SCREW
9338516012 93385-16012 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338516030 93385-16030 Lever, Cooler Control, No.1
9338616016 93386-16016 New Genuine Part
9351016012 93510-16012 Screw, Pillar Joint Setting
9417110600 94171-10600 New Genuine Part
9451100600 94511-00600 Washer, Lock, No.2
