TT140

Toyota CORONA-FR · 1982 · 4,111 parts · 158 categories
TT140 ×

← Back to categories

4,111 items

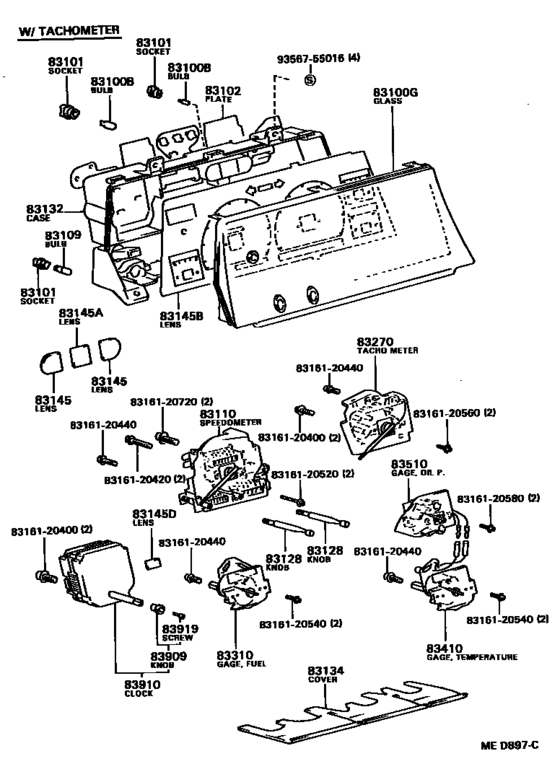

Meter ([01.1982 - 08.1985] W/TACHOMETER (8201-8508)RHD..DLX,GL ; (8508-8612)SED..CSI,CSX ,CXI) 45
#OEMPart name
83100 90981-11018 Bulb, Position Indicator Lamp
83100 99132-12034 Bulb, Position Indicator Lamp
83100 00234-00158 Bulb, Position Indicator Lamp
83100 83138-2B100 Glass, Combination Meter
83100 83138-2B140 Glass, Combination Meter
83101 83101-14040 Socket, Indicator Lamp
83101 83101-20040 Socket, Bulb(For Map Lamp)
83102 83247-2B140 Plate Sub-Assy, Combination Meter Circuit, No.1
83102 83247-2B200 Plate Sub-Assy, Combination Meter Circuit, No.1
83110 83110-20750 Speedometer Assy
83110 83110-20760 Speedometer Assy
83110 83110-20770 Speedometer Assy
83110 83110-20780 Speedometer Assy
83128 83128-20710 Knob, Trip Counter
83128 83128-20720 Knob, Trip Counter
83132 83132-2B060 Case, Combination Meter
83132 83132-2B160 Case, Combination Meter
83134 83134-2B220 Cover, Combination Meter, No.1
83145 83145-2B060 Lens, Meter, No.1
83145 83145-2B080 Lens, Meter, No.2
83145 83145-2B300 Lens, Meter, No.3
83145 83145-2B640 Lens, Meter, No.3
83145 83145-2B660 Lens, Meter, No.3
83145 83145-2B340 Lens, Meter, No.5
83270 83242-2B020 Tachometer Assy, Engine
83310 83243-2B080 Gage Assy, Fuel Receiver
83310 83243-2B100 Gage Assy, Fuel Receiver
83410 83244-2B040 Gage Assy, Water Temperature Receiver
83410 83244-2B080 Gage Assy, Water Temperature Receiver
83909 83909-12230 Knob, Clock
83909 83909-14012 Knob, Clock
83910 83910-20300 Clock Assy
83910 83910-20310 Clock Assy
83919 83919-12230 Screw, Clock
83919 83919-14012 Screw, Thermometer
8316120400 83161-20400 Case, Combination Meter Mirror, No.1
8316120420 83161-20420 Case, Combination Meter Mirror, No.1
8316120440 83161-20440 Case, Combination Meter Mirror, No.1
8316120520 83161-20520 Case, Combination Meter Mirror, No.1
8316120540 83161-20540 Case, Combination Meter Mirror, No.1
8316120560 83161-20560 Case, Combination Meter Mirror, No.1
8316120580 83161-20580 Case, Combination Meter Mirror, No.1
8316120720 83161-20720 Case, Combination Meter Mirror, No.1
9356755016 93567-55016 Screw
9356755016 93568-55016 Screw
