Search › Model › TSS13
TSS13

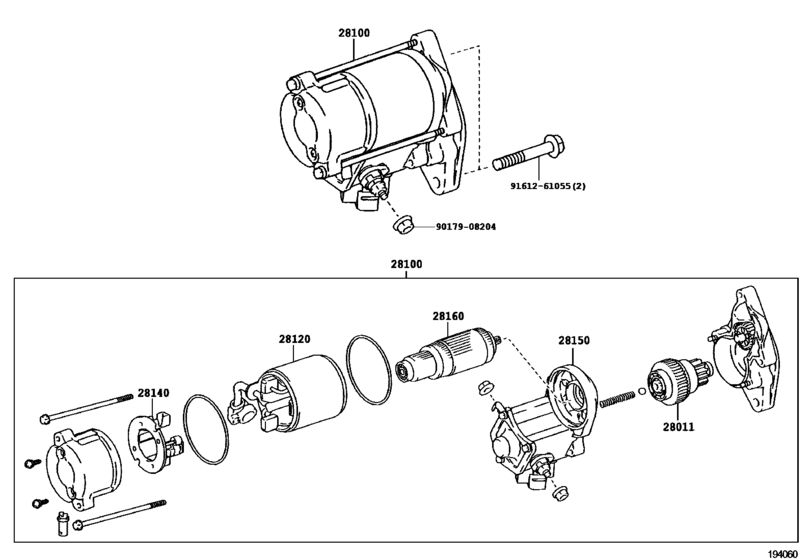

Starter ([10.2013 - ] 12V 2.0KW (1310- )) 10
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-76070 | Clutch Sub-Assy, Starter |
| 28100 | 28100-75090 | Starter Assy |
| 28100 | 28100-75091 | Starter Assy |
| 28120 | 28120-66040 | Yoke Assy, Starter |
| 28140 | 28140-76070 | Holder Assy, Starter Brush |
| 28150 | 28150-75130 | Switch Assy, Magnet Starter |
| 28160 | 28160-74070 | Armature Assy, Starter |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161261055 | 91612-61055 | Bolt (For Transfer Case) |
| OEM | Part name | Category |
|---|---|---|
| 28011-76070 | Clutch Sub-Assy, Starter | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28100-75090 | Starter Assy | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28100-75091 | Starter Assy | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28120-66040 | Yoke Assy, Starter | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28140-76070 | Holder Assy, Starter Brush | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28150-75130 | Switch Assy, Magnet Starter | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 28160-74070 | Armature Assy, Starter | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 90080-18070 | NUT, WWASHER | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 90179-08204 | Nut | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
| 91612-61055 | Bolt (For Transfer Case) | Starter ([10.2013 - ] 12V 2.0KW (1310- )) |
