Search › Model › TSS13

TSS13

Toyota CROWN-COMFORT · 2007 · 3,650 parts · 193 categories

3,650 items

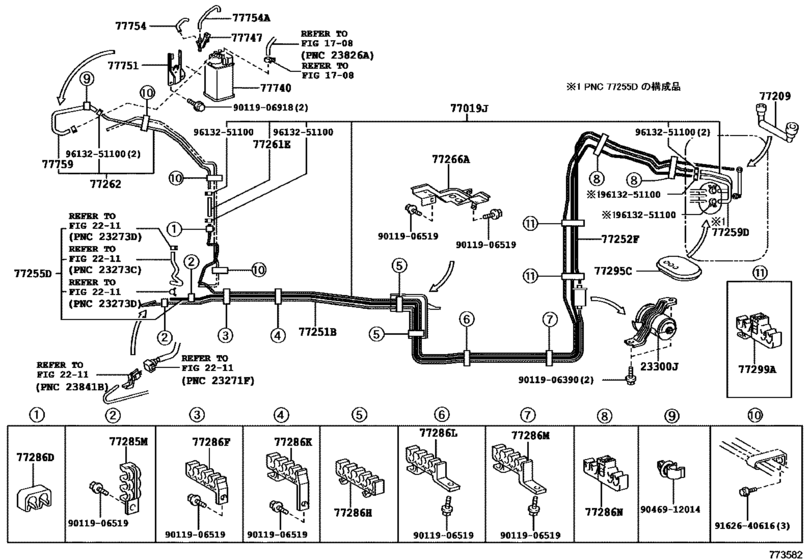

Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13) 42

#	OEM	Part name
23300	23300-70160	Filter Assy, Fuel
77019	77019-43020	Tube Sub-Assy, Fuel Tank To Canister
77019	77019-43060	Tube Sub-Assy, Fuel Tank To Canister
77209	77209-43040	Connector Sub-Assy, Fuel Tube
77251	77251-43080	Tube, Fuel Main
77251	77251-43160	Tube, Fuel Main
77252	77252-43040	Tube, Fuel Main, Rear
77252	77252-43050	Tube, Fuel Main, Rear
77255	77255-43040	Tube, Fuel Return
77255	77255-43090	Tube, Fuel Return
77259	77259-43030	Hose, Fuel, No.1
77261	95337-06020	Hose, Differential Pressure Control
77262	77026-43030	Tube, Fuel Emission, No.2
77262	77026-43031	Tube, Fuel Emission, No.2
77266	77266-43020	Protector, Fuel Tube, No.1
77266	77266-43060	Protector, Fuel Tube, No.1
77285	90959-01522	Clamp, Fuel Tube, No.1
77286	77285-42110	Support, Fuel Return And Main Tube
77286	90959-01518	Clamp, Fuel Tube, No.2
77286	77285-43050	Clamp, Fuel Tube, No.3
77286	90959-01516	Clamp, Fuel Tube, No.3
77286	77286-43020	Clamp, Fuel Tube, No.2
77286	90959-01519	Clamp, Fuel Tube, No.2
77286	77289-43030	Clamp, Fuel Tube, No.5
77286	90959-01520	Clamp, Fuel Tube, No.5
77286	77298-43050	Clamp, Fuel Tube, No.6
77286	90959-01521	Clamp, Fuel Tube, No.6
77286	90959-01517	Clamp, Fuel Tube, No.7
77295	77295-43010	Grommet, Fuel Tube
77299	77299-43010	Clamp, Fuel Tube, No.5
77740	77740-43020	Canister Assy, Charcoal
77747	77747-44020	Pipe, Charcoal Canister, No.1
77751	77751-43030	Bracket, Charcoal Canister Base
77754	77754-44060	Hose, Charcoal Canister Outlet, No.1
77754	77754-44050	Hose, Charcoal Canister Outlet, No.2
77759	77759-43040	Hose, Charcoal Canister
9011906390	90119-06390	BOLT WWASHER
9011906519	90119-06519	New Genuine Part
9011906918	90119-06918	New Genuine Part
9046912014	90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)
9162640616	91626-40616	New Genuine Part
9613251100	96132-51100	Clip (For Hose)

OEM	Part name	Category
23300-70160	Filter Assy, Fuel	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77019-43020	Tube Sub-Assy, Fuel Tank To Canister	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77019-43060	Tube Sub-Assy, Fuel Tank To Canister	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77026-43030	Tube, Fuel Emission, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77026-43031	Tube, Fuel Emission, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77209-43040	Connector Sub-Assy, Fuel Tube	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77251-43080	Tube, Fuel Main	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77251-43160	Tube, Fuel Main	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77252-43040	Tube, Fuel Main, Rear	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77252-43050	Tube, Fuel Main, Rear	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77255-43040	Tube, Fuel Return	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77255-43090	Tube, Fuel Return	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77259-43030	Hose, Fuel, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77266-43020	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77266-43060	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77285-42110	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77285-43050	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77286-43020	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77289-43030	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77295-43010	Grommet, Fuel Tube	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77298-43050	Clamp, Fuel Tube, No.6	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77299-43010	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77740-43020	Canister Assy, Charcoal	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77747-44020	Pipe, Charcoal Canister, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77751-43030	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77754-44050	Hose, Charcoal Canister Outlet, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77754-44060	Hose, Charcoal Canister Outlet, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
77759-43040	Hose, Charcoal Canister	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90119-06390	BOLT WWASHER	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90119-06519	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90119-06918	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90469-12014	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01516	Clamp, Fuel Tube, No.3	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01517	Clamp, Fuel Tube, No.7	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01518	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01519	Clamp, Fuel Tube, No.2	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01520	Clamp, Fuel Tube, No.5	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01521	Clamp, Fuel Tube, No.6	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
90959-01522	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
91626-40616	New Genuine Part	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([10.2013 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (1310- )TSS13)
