Search › Model › TSS13

TSS13

Toyota CROWN-COMFORT · 2007 · 3,650 parts · 193 categories
TSS13 ×

← Back to categories

3,650 items

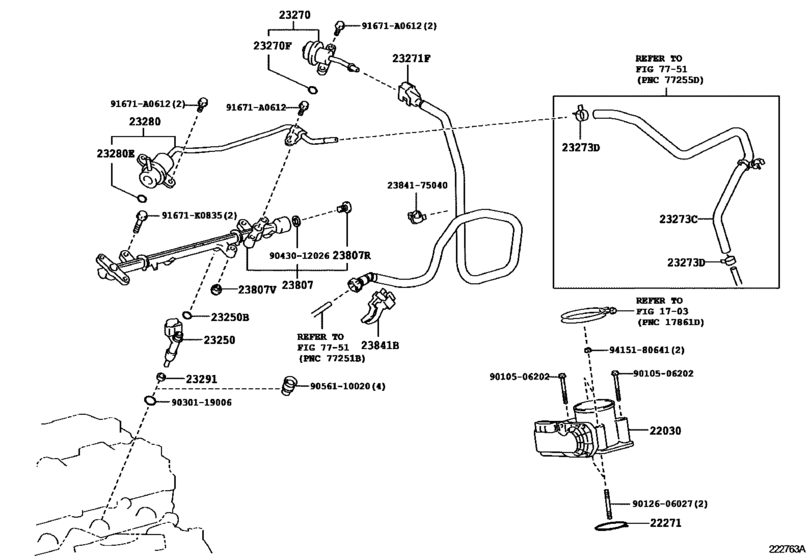

Fuel Injection System ([09.2007 - 11.2012] (0709-1211)1TRFE) 30
#OEMPart name
22030 22030-75010 Body Assy, Throttle W/motor
22271 22271-0C010 Gasket, Throttle Body
22271 22271-37010 Gasket, Throttle Body
23250 23209-79155 Injector Assy, Fuel
23250 23209-79205 Injector Assy, Fuel
23250 90301-07037 Ring, O(For Fuel Injector)
23270 23270-75010 Damper Assy, Fuel Pressure Pulsation
23270 23270-75050 Damper Assy, Fuel Pressure Pulsation
23271 23271-75240 Hose, Fuel
23273 23273-75300 Hose, Fuel, No.2
23273 96132-51100 Clip (For Hose)
23280 23280-75040 Regulator Assy, Fuel Pressure
23280 23280-75130 REGULATOR ASSY
23291 23291-73010 Insulator, Injector Vibration
23807 23807-75050 Pipe Sub-Assy, Fuel Delivery
23807 23807-75052 Pipe Sub-Assy, Fuel Delivery
23807 23807-75082 Pipe Sub-Assy, Fuel Delivery
23807 90341-12030 Plug, Fuel Delivary Pipe
23807 90561-08036 Spacer, No.1(For Delivery Pipe)
23841 23841-21050 Clamp, Fuel Pipe, No.1(For Efi)
23841 23841-36010 Clamp, Fuel Pipe, No.1(For Efi)
91671 91671-A0612 BOLT FLANGE
91671 91671-K0835 New Genuine Part
2384175040 23841-75040 Clamp, Fuel Pipe(hose), No.1
9010506202 90105-06202 Bolt(For Cylinder Head Cover)
9012606027 90126-06027 STUD HEXALOBULAR
9030119006 90301-19006 Ring, O(For Fuel Injector)
9043012026 90430-12026 Gasket
9056110020 90561-10020 SPACER
9415180641 94151-80641 NUT FLANGE
