TSS11

Toyota CROWN-COMFORT · 2008 · 3,671 parts · 201 categories

← Back to categories

3,671 items

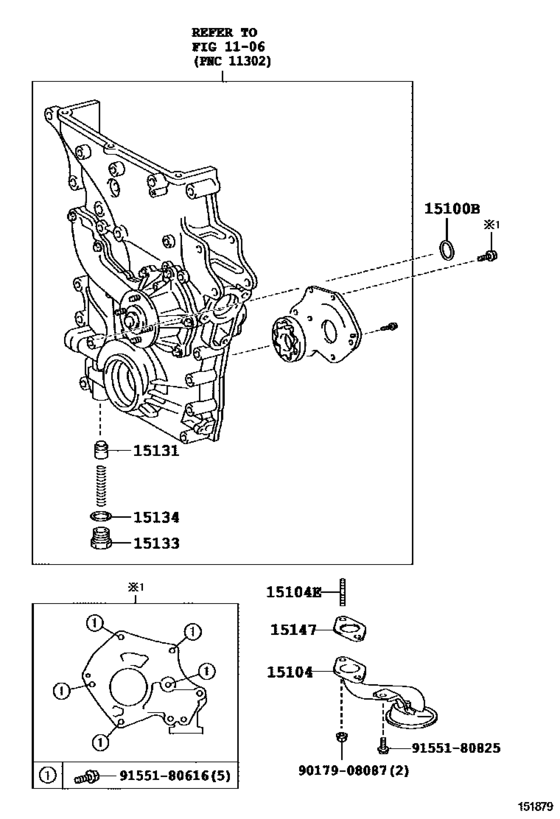

Engine Oil Pump ([09.2007 - ] (0709- )1TR#) 12

#	OEM	Part name
15100	90301-19021	Ring, O(For Oil Pump)
15104	15104-75130	Strainer Sub-Assy, Oil
15104	90126-08037	Bolt, Stud(For Oil Strainer)
15104	90126-08052	Bolt, Stud(For Oil Pan)
15131	15131-46040	Valve, Oil Pump Relief
15133	15133-17010	Plug, Oil Pump Relief Valve
15133	15133-33040	Plug, Oil Pump Relief Valve
15134	15134-67020	Gasket, Oil Pump Relief Valve
15147	15147-75030	Gasket, Oil Strainer
9017908087	90179-08087	Nut
9155180616	91551-80616	BOLT FLANGE
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
15104-75130	Strainer Sub-Assy, Oil	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
15131-46040	Valve, Oil Pump Relief	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
15133-17010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
15133-33040	Plug, Oil Pump Relief Valve	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
15134-67020	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
15147-75030	Gasket, Oil Strainer	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
90126-08037	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
90126-08052	Bolt, Stud(For Oil Pan)	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
90179-08087	Nut	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
90301-19021	Ring, O(For Oil Pump)	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
91551-80616	BOLT FLANGE	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)
91551-80825	Bolt(For Cylinder Head Set Sub)	Engine Oil Pump ([09.2007 - ] (0709- )1TR#)

Source: Public OEM parts-catalog data
Variants: 2 / 5
Category: 201
Collected: 2026-08-02
