| 32907-43010 |
Tube Sub-Assy, Oil Cooler |

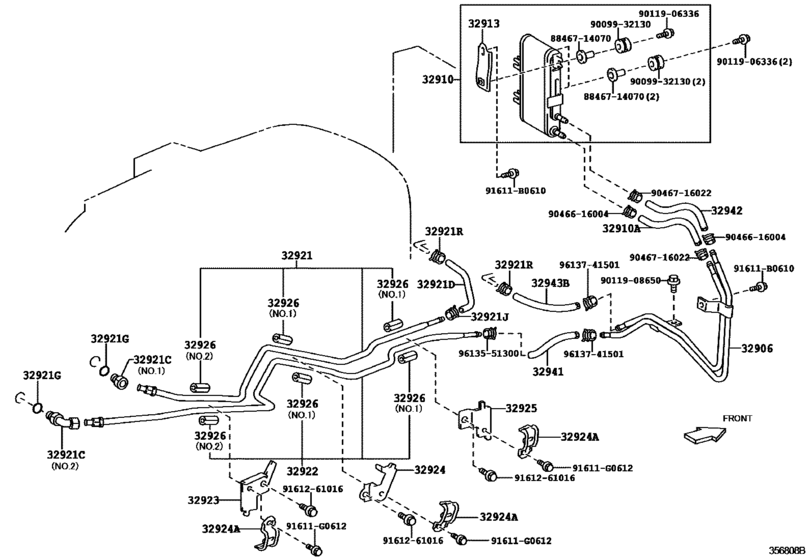

Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32910-43010 |
Cooler Assy, Oil |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32913-43010 |
Bracket, Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32921-43080 |
Tube, Oil Cooler Inlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32921-43081 |
Tube, Oil Cooler Inlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32922-43080 |
Tube, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32922-43081 |
Tube, Oil Cooler Outlet, No.1 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32923-43050 |
Clamp, Automatic Transmission Oil Cooler Tube |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32924-43030 |
Clamp, Oil Cooler Tube, No.2 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32925-43030 |
Clamp, Oil Cooler Tube, No.3 |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32926-32010 |
Cushion, Oil Cooler Tube(Atm) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32926-50040 |
Cushion, Oil Cooler Tube(Atm) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32929-22050 |
Clamp, Automatic Transmission Oil Cooler Tube |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32941-22310 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32942-28190 |
Hose, Oil Cooler Water Outlet |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32943-43030 |
Hose, Transmission Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 32943-43031 |
Hose, Transmission Oil Cooler |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 88467-14070 |
Insulator (For Power Take-Off Cable Bracket) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90099-32130 |
Grommet (For Power Take-Off Cable Bracket) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90119-06336 |
SCREW |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90119-08650 |
New Genuine Part |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90301-11030 |
Ring, O(For Oil Cooler Tube Union) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90404-16029 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90407-16009 |
Union(For Oil Cooler Tube) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90445-15020 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90445-15057 |
Hose, Oil Cooler Tube(For Outlet) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90445-17115 |
Hose(For Oil Cooler Inlet) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90466-16004 |
Clip(For Ventilation Hose No.2) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 90467-16022 |
Clip(For Water Inlet Hose) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 91611-B0610 |
Bolt (For Transfer Oil Receiver No.1) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 91611-G0612 |
Bolt |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 91612-61016 |
Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 96135-51300 |
Clamp, Hose |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
| 96137-41501 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Oil Cooler & Tube (Atm) ([08.2008 - ] A340E (0808- )) |
