Search › Model › TSS10

TSS10

Toyota CROWN-COMFORT · 2008 · 4,085 parts · 347 categories
TSS10 ×

← Back to categories

4,085 items

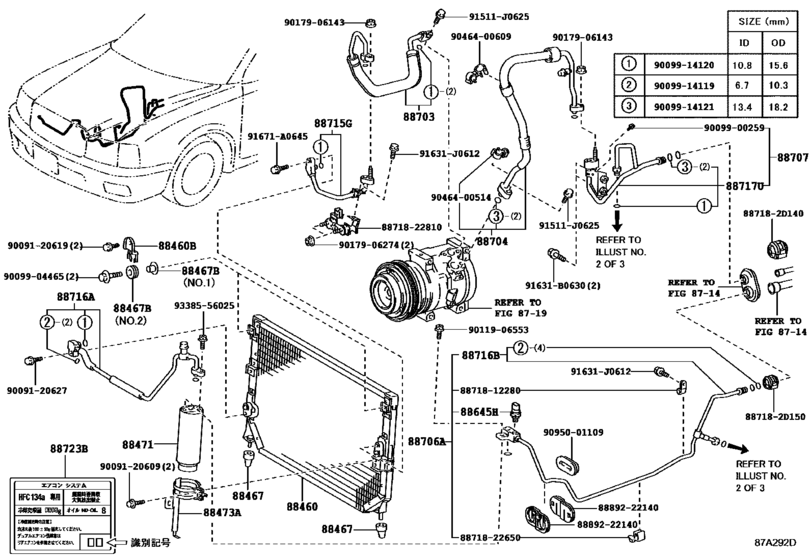

Heating & Air Conditioning - Cooler Piping ([08.2008 - ] ﾌﾛﾝﾄ,ｱﾘ(ﾌｭｰｴﾙｸｰﾗ) (0808- )CRW,SED,TAX) 52
#OEMPart name
88460 88460-43010 Condenser Assy, Cooler
88460 88688-43010 Bracket, Cooler Condenser, No.1
88467 88467-32020 Cushion, Cooler Condenser, No.1
88467 88467-14050 Cushion, Cooler Condenser, No.1
88467 88467-24060 Insulator, Cooler Condenser Mounting
88471 88471-22030 Tank, Receiver Air Conditioner
88473 88473-43020 Holder, Receiver
88645 88645-22080 Switch, Pressure No.1
88703 88703-43060 Hose Sub-Assy, Discharge
88704 88704-43040 Hose Sub-Assy, Suction
88704 88704-43041 Hose Sub-Assy, Suction
88706 88706-43060 Tube Sub-Assy, Liquid, A
88706 88706-43100 Tube Sub-Assy, Liquid, A
88707 88707-43030 Pipe Sub-Assy, Suction
88707 88707-43050 Pipe Sub-Assy, Suction
88715 88715-43020 Tube, Discharge, G
88716 88716-43100 Pipe, Cooler Refrigerant Liquid, A
88716 88716-43190 Pipe, Cooler Refrigerant Liquid, B
88717 88717-43080 Tube, Suction, No.1
88723 88733-30040 Label, Cooler Service Caution
88723 88733-25010 Label, Cooler Service Caution
88723 88733-30041 Label, Cooler Service Caution
88723 88733-30050 Label, Cooler Service Caution
88723 88733-37050 Label, Cooler Service Caution
88723 88733-30051 Label, Cooler Service Caution
91511 91511-J0625 Bolt(For Cylinder Head Cover)
91631 91631-B0630 BOLT WWASHER
91631 91631-J0612 BRACKET
91671 91671-A0645 New Genuine Part
887182 88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871822650 88718-22650 Clamp(For Cooler Refrigerant Pipe), No.2
8871822810 88718-22810 Pipe, Cooler Refrigerant Suction, No.2
8889222140 88892-22140 Bracket, Cooler Evaporator Mounting
9009120609 90091-20609 BOLT
9009120619 90091-20619 BOLT
9009120627 90091-20627 New Genuine Part
9009900259 90099-00259 New Genuine Part
9009904465 90099-04465 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9017906143 90179-06143 NUT
9017906274 90179-06274 Nut
9046400514 90464-00514 New Genuine Part
9046400609 90464-00609 New Genuine Part
9095001109 90950-01109 New Genuine Part
9338556025 93385-56025 New Genuine Part
