TSS10

Toyota CROWN-COMFORT · 2008 · 4,085 parts · 347 categories

4,085 items

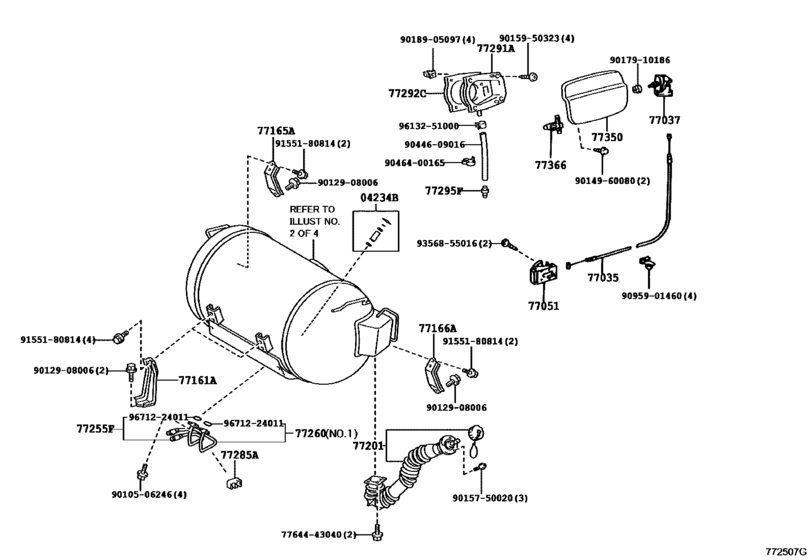

Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- )) 37

#	OEM	Part name
4234	04234-75010	Element Kit, Lpg Filter
4234	04234-75011	Element Kit, Lpg Filter
77035	77035-43010	Cable Sub-Assy, Fuel Lid Lock Control
77035	77035-43011	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-90K00	Lock Sub-Assy, Fuel Tank Cap
77051	77051-30060-C0	Lever Sub-Assy, Fuel Lid Open
77161	77161-43011	Bracket, Fuel Tank Mounting, Front
77161	77161-43020	Bracket, Fuel Tank Mounting, Front
77165	77165-43011	Bracket, Fuel Tank Mounting, Rear No.2 Rh
77165	77165-43020	Bracket, Fuel Tank Mounting, Rear No.2 Rh
77166	77166-43011	Bracket, Fuel Tank Mounting, Rear No.2 Lh
77166	77166-43020	Bracket, Fuel Tank Mounting, Rear No.2 Lh
77201	77201-43080	Pipe Sub-Assy, Fuel Tank Inlet
77255	77250-43010	Hose, Fuel, No.2 (For Fuel Return Tube)
77260	77260-43010	Hose Assy, Fuel Main
77260	77260-43020	Hose Assy, Fuel Main
77285	77285-42110	Support, Fuel Return And Main Tube
77291	77291-30040	Shield, Fuel Tank Filler Pipe
77292	77292-30030	Shield, Fuel Tank Filler Pipe, No.2
77295	77295-43020	Grommet, Fuel Hose
77350	77350-43010	Lid Assy, Fuel Filler Opening
77366	77360-43010	Spring, Fuel Filler Opening Lid Hinge
7764443040	77644-43040	Bolt, Fuel Tank
9010506246	90105-06246	BOLT
9012908006	90129-08006	New Genuine Part
9014960080	90149-60080	New Genuine Part
9015750020	90157-50020	New Genuine Part
9015950323	90159-50323	SCREWWWASHER
9017910186	90179-10186	New Genuine Part
9018905097	90189-05097	GROMMET SCREW
9044609016	90446-09016	New Genuine Part
9046400165	90464-00165	Clamp, No.2(For Luggage Door Lock Control Cable)
9095901460	90959-01460	Clamp (For Fuel Lid Lock Control Cable)
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9356855016	93568-55016	Screw
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)
9671224011	96712-24011	Ring, O (For Tank Valve Joint Sleeve)

OEM	Part name	Category
04234-75010	Element Kit, Lpg Filter	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
04234-75011	Element Kit, Lpg Filter	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77035-43010	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77035-43011	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77037-90K00	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77051-30060-C0	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77161-43011	Bracket, Fuel Tank Mounting, Front	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77161-43020	Bracket, Fuel Tank Mounting, Front	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77165-43011	Bracket, Fuel Tank Mounting, Rear No.2 Rh	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77165-43020	Bracket, Fuel Tank Mounting, Rear No.2 Rh	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77166-43011	Bracket, Fuel Tank Mounting, Rear No.2 Lh	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77166-43020	Bracket, Fuel Tank Mounting, Rear No.2 Lh	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77201-43080	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77250-43010	Hose, Fuel, No.2 (For Fuel Return Tube)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77260-43010	Hose Assy, Fuel Main	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77260-43020	Hose Assy, Fuel Main	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77285-42110	Support, Fuel Return And Main Tube	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77291-30040	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77292-30030	Shield, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77295-43020	Grommet, Fuel Hose	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77350-43010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77360-43010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
77644-43040	Bolt, Fuel Tank	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90105-06246	BOLT	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90129-08006	New Genuine Part	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90149-60080	New Genuine Part	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90157-50020	New Genuine Part	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90159-50323	SCREWWWASHER	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90179-10186	New Genuine Part	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90189-05097	GROMMET SCREW	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90446-09016	New Genuine Part	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90464-00165	Clamp, No.2(For Luggage Door Lock Control Cable)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
90959-01460	Clamp (For Fuel Lid Lock Control Cable)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
93568-55016	Screw	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
96712-24011	Ring, O (For Tank Valve Joint Sleeve)	Fuel Tank & Tube ([08.2008 - ] FUEL TANK (0808- ))
