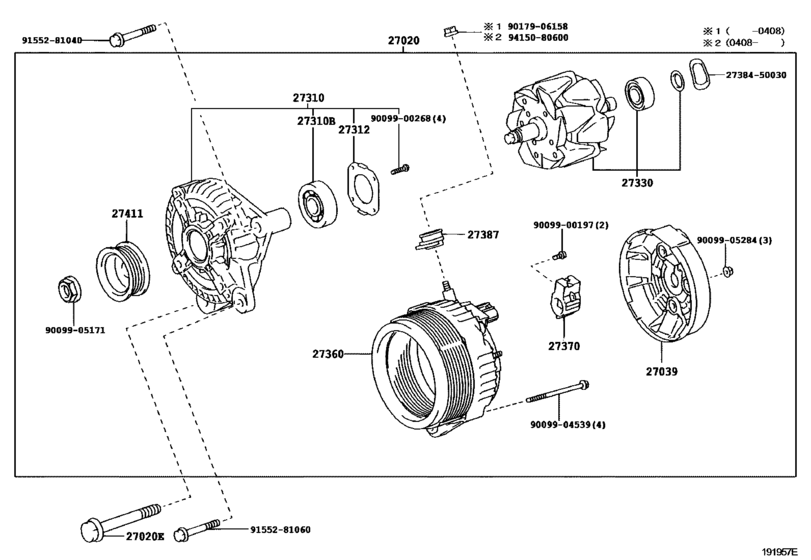

| 27039-27060 |
Cover, Alternator Rear End |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27039-31390 |
Cover, Alternator Rear End |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27060-75310 |
Alternator Assy |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27060-75311 |
Alternator Assy |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27060-75320 |
Alternator Assy |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27310-75270 |
Frame Assy, Drive End, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27330-30130 |
Rotor Assy, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27330-33090 |
Rotor Assy, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27330-62220 |
Rotor Assy, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27360-75270 |
Coil Assy, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27370-23120 |
Holder Assy, Alternator Brush |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27370-58460 |
Holder Assy, Alternator Brush |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27384-50030 |
Holder, Alternator Brush, A |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27411-31200 |
Pulley, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 27411-31210 |
Pulley, Alternator |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-00197 |
Screw |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-04539 |
BOLT |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-05171 |
Nut(For Alternator Pulley) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-05284 |
NUT |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-10142 |
Bearing(For Alternator Drive End Frame) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 90179-06158 |
Nut, Rear Wiper Link Pivot, No.2 |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 91552-81040 |
Bolt(For Alternator) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 91552-81060 |
Bolt, No.3(For Alternator) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 91552-81085 |
Bolt(For Alternator) |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
| 94150-80600 |
NUT FLANGE |
Alternator ([08.2003 - ] 12V 130A (0308- )1TRFE..T2,T3,T4,TW1,TW3..CBU,IV3) |
