Search › Model › TRN285

TRN285

Toyota HILUX-SURF-4RUNNER · 2010 · 4,248 parts · 190 categories

4,248 items

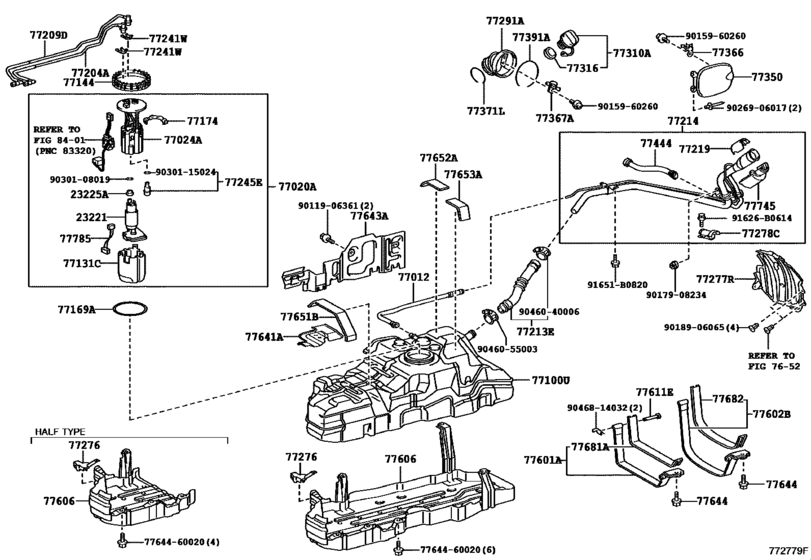

Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#) 63

#	OEM	Part name
23221	23220-75091	Pump, Fuel
23225	23225-23010	Spacer, Fuel Pump
77012	77012-35090	Tube Sub-Assy, Fuel Tank Breather
77020	77020-35160	Tube Assy, Fuel Suction W/pump & Gage
77024	77024-35080	Plate Sub-Assy, Fuel Suction
77100	77001-35A20	Tank Sub-Assy, Fuel
77131	77131-60090	Sub-Tank, Fuel, No.1
77144	77144-35010	Retainer, Fuel Pump Gauge
77169	77169-30050	Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)
77174	77174-60020	Support, Fuel Suction, No.1
77204	77204-35090	Tube, Fuel Tank Return - FUEL RETURN
77209	77209-35470	Tube Sub-Assy, Fuel Tank Main
77213	77213-35410	Hose, Fuel Tank To Filler Pipe
77214	77210-35050	Pipe, Fuel Tank Filler
77214	77210-35080	Pipe, Fuel Tank Filler
77214	77300-53020	Cap Assy, Fuel Tank
77219	77219-48030	Cover, Fuel Tank Filler Pipe
77241	77241-33011	Clip, Tube Joint
77245	77245-35310	Cap, Fuel Suction
77276	77276-35040	Protector, Fuel Hose
77277	77277-35040	Protector, Fuel Tank Filler Pipe
77278	77277-35050	Protector, Fuel Tank Filler Pipe, No.2
77291	77291-35150	Shield, Fuel Tank Filler Pipe
77310	77300-52040	Cap Assy, Fuel Tank
77316	77316-52040	Gasket, Fuel Tank Cap
77350	77350-35070	Lid Assy, Fuel Filler Opening
77350	77350-35071	Lid Assy, Fuel Filler Opening
77366	77366-35030	Spring, Fuel Filler Opening Lid Hinge
77367	77367-35020	Clamp, Fuel Filler Lid Pin, No.1
77371	77371-35010	Ring, Fuel Tank Filler Pipe Shield
77391	77391-12060	Ring, Fuel Inlet Box
77444	77404-35050	Hose, Fuel Tank Vent
77601	77601-60340	Band Sub-Assy, Fuel Tank, No.1
77601	77601-60420	Band Sub-Assy, Fuel Tank, No.1
77602	77602-60120	Band Sub-Assy, Fuel Tank, No.1 Lh
77606	77606-60190	Protector Sub-Assy, Fuel Tank, No.1
77606	77606-60200	Protector Sub-Assy, Fuel Tank, No.1 (Half type)
77611	77653-35040	Pin (For Fuel Tank Band)
77641	77641-35100	Protector, Fuel Tank, No.1
77643	77643-35040	Protector, Fuel Tank, No.3
77644	77644-35030	Bolt, Fuel Tank
77651	77651-35080	Cushion, Fuel Tank
77652	77652-35060	Cushion, Fuel Tank, No.2
77653	77653-35050	Cushion, Fuel Tank, No.3
77681	77681-60210	Seat, Fuel Tank Band
77682	77681-35041	Seat, Fuel Tank Band
77745	77745-48020	Filter, Charcoal Canister, No.1
77785	77785-60020	Harness, Fuel Pump
77785	77785-60021	HARNESS FUEL PUMP
91626	91626-B0614	BOLT, W/WASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
7764460020	77644-60020	Bolt, Fuel Tank
9011906361	90119-06361	BOLT WWASHER
9015960260	90159-60260	SCREW
9017908234	90179-08234	NUT
9018906065	90189-06065	CLIP
9026906017	90269-06017	RIVET
9030108019	90301-08019	Ring, O(For Fuel Pressure Regulator)
9030115024	90301-15024	Ring, O(For Fuel Pump)
9046040006	90460-40006	New Genuine Part
9046055003	90460-55003	Clamp Or Clip(For Air Hose, No.1)
9046814032	90468-14032	CLIP

OEM	Part name	Category
23220-75091	Pump, Fuel	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
23225-23010	Spacer, Fuel Pump	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77001-35A20	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77012-35090	Tube Sub-Assy, Fuel Tank Breather	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77020-35160	Tube Assy, Fuel Suction W/pump & Gage	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77024-35080	Plate Sub-Assy, Fuel Suction	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77131-60090	Sub-Tank, Fuel, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77144-35010	Retainer, Fuel Pump Gauge	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77169-30050	Gasket, Fuel Suction Tube Set - (for the fuel tank pump housing)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77174-60020	Support, Fuel Suction, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77204-35090	Tube, Fuel Tank Return - FUEL RETURN	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77209-35470	Tube Sub-Assy, Fuel Tank Main	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77210-35050	Pipe, Fuel Tank Filler	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77210-35080	Pipe, Fuel Tank Filler	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77213-35410	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77219-48030	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77241-33011	Clip, Tube Joint	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77245-35310	Cap, Fuel Suction	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77276-35040	Protector, Fuel Hose	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77277-35040	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77277-35050	Protector, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77291-35150	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77300-52040	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77300-53020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77316-52040	Gasket, Fuel Tank Cap	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77350-35070	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77350-35071	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77366-35030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77367-35020	Clamp, Fuel Filler Lid Pin, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77371-35010	Ring, Fuel Tank Filler Pipe Shield	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77391-12060	Ring, Fuel Inlet Box	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77404-35050	Hose, Fuel Tank Vent	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77601-60340	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77601-60420	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77602-60120	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77606-60190	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77606-60200	Protector Sub-Assy, Fuel Tank, No.1 (Half type)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77641-35100	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77643-35040	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77644-35030	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77644-60020	Bolt, Fuel Tank	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77651-35080	Cushion, Fuel Tank	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77652-35060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77653-35040	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77653-35050	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77681-35041	Seat, Fuel Tank Band	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77681-60210	Seat, Fuel Tank Band	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77745-48020	Filter, Charcoal Canister, No.1	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77785-60020	Harness, Fuel Pump	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
77785-60021	HARNESS FUEL PUMP	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90080-11347	New Genuine Part	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90119-06361	BOLT WWASHER	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90159-60260	SCREW	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90179-08234	NUT	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90189-06065	CLIP	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90269-06017	RIVET	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90301-08019	Ring, O(For Fuel Pressure Regulator)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90301-15024	Ring, O(For Fuel Pump)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90460-40006	New Genuine Part	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90460-55003	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
90468-14032	CLIP	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
91626-B0614	BOLT, W/WASHER	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)
91651-B0820	Bolt, Radiator Side Support Plate	Fuel Tank & Tube ([11.2009 - ] FUEL TANK (0911- )TRN28#)

Source: Public OEM parts-catalog data
