Search › Model › TRN285

TRN285

Toyota HILUX-SURF-4RUNNER · 2010 · 4,248 parts · 190 categories

4,248 items

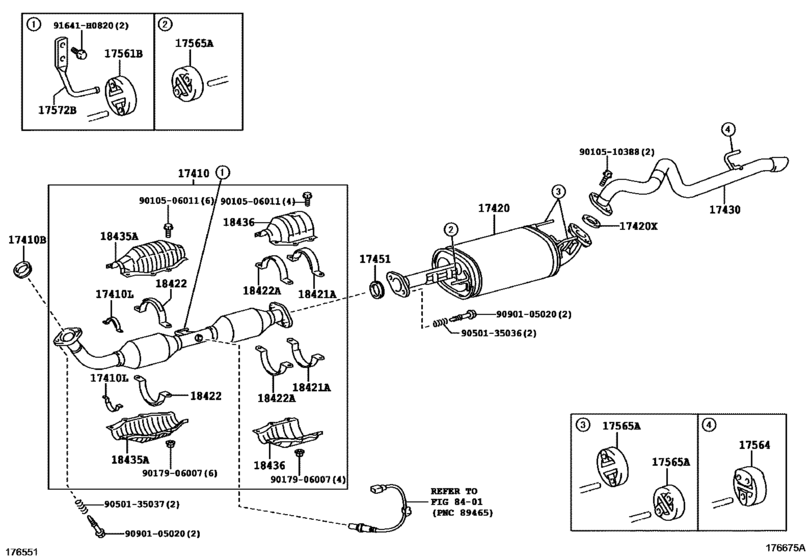

Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE) 22

#	OEM	Part name
17410	17410-75631	Pipe Assy, Exhaust, Front
17410	17451-74040	Gasket, Exhaust Pipe
17410	17541-75030	Stay, Exhaust Pipe Protector (For Front)
17420	17420-75590	Pipe Assy, Exhaust, Center
17420	90917-06090	Gasket, Exhaust Pipe
17430	17430-31870	Pipe Assy, Exhaust, Tail
17451	17451-31020	Gasket, Exhaust Pipe
17561	17565-22040	Support, Exhaust Pipe, No.1
17564	17565-31050	Support, Exhaust Pipe, No.1
17572	17572-75290	Bracket, Exhaust Pipe Support, No.2
18421	18421-75010	Stay, Converter Protector, Lh
18422	18421-75020	Stay, Converter Protector, Lh
18422	18421-75040	Stay, Converter Protector, No.3
18435	18435-75070	Protector, Monolithic Converter
18436	18445-75040	Protector, Monolithic Converter, No.1
91641	91641-H0820	Bolt
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9050135036	90501-35036	SPRING COMPRESSION
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)

OEM	Part name	Category
17410-75631	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17420-75590	Pipe Assy, Exhaust, Center	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17430-31870	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17451-31020	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17451-74040	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17541-75030	Stay, Exhaust Pipe Protector (For Front)	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17565-31050	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
17572-75290	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
18421-75010	Stay, Converter Protector, Lh	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
18421-75020	Stay, Converter Protector, Lh	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
18421-75040	Stay, Converter Protector, No.3	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
18435-75070	Protector, Monolithic Converter	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
18445-75040	Protector, Monolithic Converter, No.1	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90105-06011	BOLT	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90105-10388	BOLT	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90179-06007	Nut	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90501-35036	SPRING COMPRESSION	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
90917-06090	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)
91641-H0820	Bolt	Exhaust Pipe ([11.2009 - 08.2011] (0911-1108)2TRFE)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 190
Collected: 2026-08-03
