Search › Model › TRN285

TRN285

Toyota HILUX-SURF-4RUNNER · 2010 · 4,248 parts · 190 categories

4,248 items

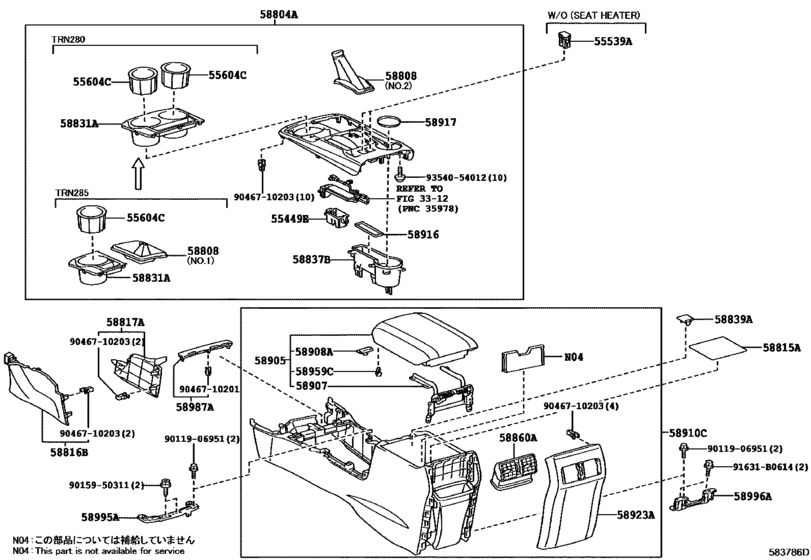

Console Box & Bracket ([11.2009 - ] (0911- )TRN28#) 45

#	OEM	Part name
55449	58814-35020	Base, Switch
55539	55539-58060-C0	Cover, Spare Switch Hole
55604	66991-35020	Holder Sub-Assy, Console Box Cup
55604	66991-35030	Holder Sub-Assy, Console Box Cup
58804	58804-35470	Panel Sub-Assy, Console, Upper
58808	58808-35320	Cover Sub-Assy, Shifting Hole
58808	58808-35330	Cover Sub-Assy, Shifting Hole
58815	58815-35030	Carpet, Console Box
58816	58816-35040-B0	Insert, Console Box
58816	58816-35040-E0	Insert, Console Box
58817	58817-35020-B0	Insert, Console Box, Front No.2
58817	58817-35020-E0	Insert, Console Box, Front No.2
58831	58831-35040	Garnish, Console Upper Panel, Front
58837	58837-35040	Box, Console Cup Holder
58837	58806-35030	Box, Console Cup Holder
58839	58839-35030	Cover, Console Box Hole
58860	58860-60050-B0	Register Assy, Console Box
58860	58860-60050-E1	Register Assy, Console Box
58905	58905-35120-B0	Door Sub-Assy, Console Compartment
58905	58905-35120-E0	Door Sub-Assy, Console Compartment
58905	58905-35130-B0	Door Sub-Assy, Console Compartment
58905	58905-35130-E0	Door Sub-Assy, Console Compartment
58907	58907-35030	Hinge Sub-Assy, Console Compartment Door
58908	58908-12080	Lock Sub-Assy, Console Compartment Door
58908	58908-32021	Lock Sub-Assy, Console Compartment Door
58910	58910-35290-B0	Box Assy, Console, Rear
58910	58910-35290-E0	Box Assy, Console, Rear
58910	58910-35300-B0	Box Assy, Console, Rear
58910	58910-35300-E0	Box Assy, Console, Rear
58916	58916-35080	Mat, Box Bottom
58917	58917-35060	Mat, Box Bottom, No.2
58923	58923-35020-B0	Panel, Console Rear End
58923	58923-35020-E0	Panel, Console Rear End
58959	58959-60060	Cushion, Instrument Panel
58987	58987-35020-B0	Retainer, Console Box, No.2
58987	58987-35020-E0	Retainer, Console Box, No.2
58995	58995-35060	Bracket, Console Box Mounting, No.1
58996	58996-35040	Bracket, Console Box Mounting, No.2
91631	91631-B0614	BOLT WWASHER
9011906951	90119-06951	BOLT WWASHER
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9046710201	90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing
9046710203	90467-10203	Direct
9354054012	93540-54012	Screw, Headlamp

OEM	Part name	Category
55539-58060-C0	Cover, Spare Switch Hole	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58804-35470	Panel Sub-Assy, Console, Upper	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58806-35030	Box, Console Cup Holder	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58808-35320	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58808-35330	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58814-35020	Base, Switch	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58815-35030	Carpet, Console Box	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58816-35040-B0	Insert, Console Box	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58816-35040-E0	Insert, Console Box	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58817-35020-B0	Insert, Console Box, Front No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58817-35020-E0	Insert, Console Box, Front No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58831-35040	Garnish, Console Upper Panel, Front	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58837-35040	Box, Console Cup Holder	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58839-35030	Cover, Console Box Hole	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58860-60050-B0	Register Assy, Console Box	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58860-60050-E1	Register Assy, Console Box	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58905-35120-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58905-35120-E0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58905-35130-B0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58905-35130-E0	Door Sub-Assy, Console Compartment	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58907-35030	Hinge Sub-Assy, Console Compartment Door	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58908-12080	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58908-32021	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58910-35290-B0	Box Assy, Console, Rear	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58910-35290-E0	Box Assy, Console, Rear	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58910-35300-B0	Box Assy, Console, Rear	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58910-35300-E0	Box Assy, Console, Rear	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58916-35080	Mat, Box Bottom	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58917-35060	Mat, Box Bottom, No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58923-35020-B0	Panel, Console Rear End	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58923-35020-E0	Panel, Console Rear End	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58959-60060	Cushion, Instrument Panel	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58987-35020-B0	Retainer, Console Box, No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58987-35020-E0	Retainer, Console Box, No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58995-35060	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
58996-35040	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
66991-35020	Holder Sub-Assy, Console Box Cup	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
66991-35030	Holder Sub-Assy, Console Box Cup	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
90119-06951	BOLT WWASHER	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
90159-50311	SCREW	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
90159-A0034	SCREW WWASHER	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
90467-10201	Clip, Cover Sub-Assy, Position Indicator Housing	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
90467-10203	Direct	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
91631-B0614	BOLT WWASHER	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
93540-54012	Screw, Headlamp	Console Box & Bracket ([11.2009 - ] (0911- )TRN28#)
