TRN280

Toyota HILUX-SURF-4RUNNER · 2009 · 4,232 parts · 192 categories

← Back to categories

4,232 items

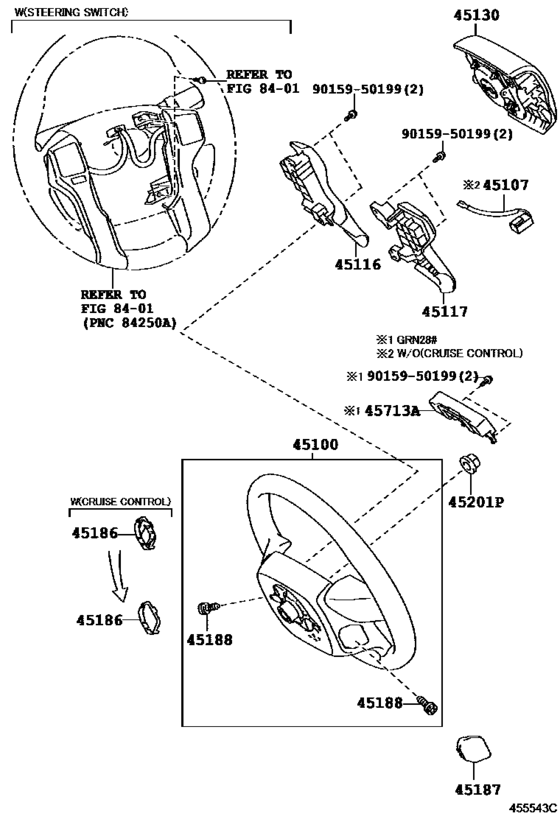

Steering Wheel ([08.2009 - ] 4-SPOKE (0908- )) 12

#	OEM	Part name
45100	45100-35540-C0	Wheel Assy, Steering
45100	45100-60670-C0	Wheel Assy, Steering
45107	45107-22010	Wire Sub-Assy, Horn Button
45116	45116-60030-B1	Ornament, Steering Wheel, No.1
45117	45117-60030-B2	Ornament, Steering Wheel, No.2
45130	45130-35460-C0	Button Assy, Horn
45186	45186-60070-C0	Cover, Steering Wheel, Lower No.2
45186	45186-60080-C0	Cover, Steering Wheel, Lower No.2
45187	45187-60040-C0	Cover, Steering Wheel, Lower No.3
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set
9015950199	90159-50199	SCREW

OEM	Part name	Category
45100-35540-C0	Wheel Assy, Steering	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45100-60670-C0	Wheel Assy, Steering	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45107-22010	Wire Sub-Assy, Horn Button	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45116-60030-B1	Ornament, Steering Wheel, No.1	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45117-60030-B2	Ornament, Steering Wheel, No.2	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45130-35460-C0	Button Assy, Horn	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45186-60070-C0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45186-60080-C0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45187-60040-C0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
90159-50199	SCREW	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([08.2009 - ] 4-SPOKE (0908- ))
