TRN265

Toyota TACOMA · 2004 · 3,111 parts · 201 categories

3,111 items

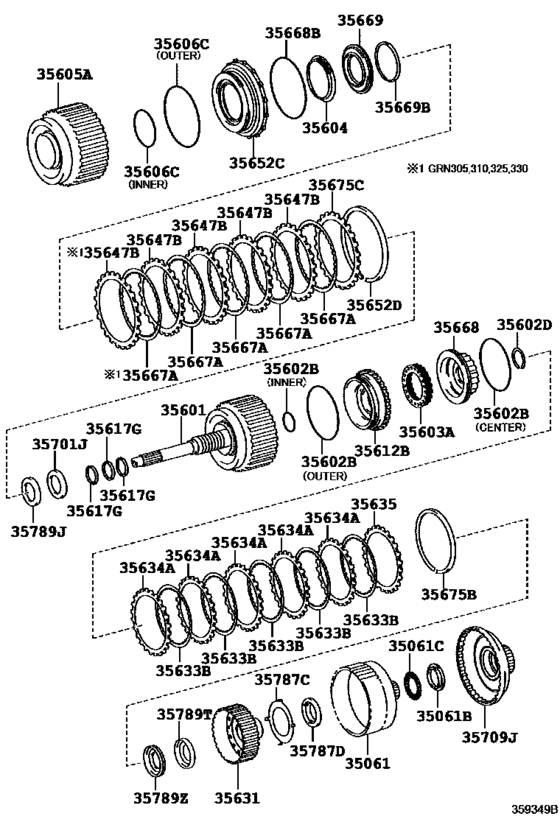

Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC) 56

#	OEM	Part name
35061	35061-04010	Hub Sub-Assy, Forward Clutch
35061	35789-04020	Race, Thrust Bearing(For Forward Clutch Hob)
35061	90374-A0046	Bearing, Thrust Needle Roller(For Forward Clutch Hub)
35601	35601-04010	Drum Sub-Assy, Clutch
35602	90301-A0042	Ring, O (For Forward Clutch Piston)
35602	90301-A0058	Ring, O (For Forward Clutch Piston)
35602	90301-A0059	Ring, O (For Forward Clutch Piston)
35602	90520-35003	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
35603	35603-0C010	Spring Sub-Assy, Forward Clutch Return
35604	35604-04010	Spring Sub-Assy, Direct Clutch Return
35605	35605-04010	Drum Sub-Assy, Direct Clutch
35606	90301-A0043	Ring, O (For Direct Clutch Piston)
35606	90301-A0044	Ring, O (For Direct Clutch Piston)
35612	35612-04020	Piston, Forward Clutch
35617	35617-71010	Ring, Clutch Drum Oil Seal
35631	35631-71010	Hub, Clutch(For Multiple Disc Clutch)
35633	35633-04010	Disc, Clutch (For Forward Multiple Disc Clutch)
35634	35634-04010	Plate, Clutch (For Forward Multiple Disc Clutch)
35635	35635-04010	Flange, Forward Clutch
35635	35635-04020	Flange, Forward Clutch
35635	35635-04030	Flange, Forward Clutch
35635	35635-04040	Flange, Forward Clutch
35635	35635-04050	Flange, Forward Clutch
35635	35635-04060	Flange, Forward Clutch
35635	35635-04070	Flange, Forward Clutch
35635	35635-04080	Flange, Forward Clutch
35635	35635-04090	Flange, Forward Clutch
35635	35635-04100	Flange, Forward Clutch
35635	35635-04110	Flange, Forward Clutch
35635	35635-04120	Flange, Forward Clutch
35635	35635-04130	Flange, Forward Clutch
35647	35647-04010	Plate, Clutch, No.2
35652	35652-04010	Piston, Direct Clutch
35652	90520-99159	Ring, Hole Snap(For Reverse Clutch Flange)
35667	35667-04010	Disk, Direct Clutch
35668	35668-04010	Balancer, Clutch, No.1
35668	90301-A0045	Ring, O(For Clutch Balancer)
35669	35669-04010	Balancer, Clutch, No.2
35669	90520-A0038	Ring, Shaft Snap (For Direct Clutch Piston Return Spring)
35675	90520-99158	Ring, Hole Snap (For Forward Clutch Flange)
35675	35675-04010	Flange, Direct Clutch
35675	35675-04020	Flange, Direct Clutch
35675	35675-04030	Flange, Direct Clutch
35675	35675-04040	Flange, Direct Clutch
35675	35675-04050	Flange, Direct Clutch
35675	35675-04060	Flange, Direct Clutch
35675	35675-04070	Flange, Direct Clutch
35675	35675-04080	Flange, Direct Clutch
35675	35675-04090	Flange, Direct Clutch
35701	90374-A0045	Bearing, Thrust Needle Roller (For Input Shaft Front)
35709	35709-04010	Drum Sub-Assy, Sun Gear Input
35787	35787-0C010	Race, Thrust Bearing, No.2
35787	90374-A0003	Bearing, Thrust Needle Roller
35789	35789-04010	Race, Thrust Bearing (For Input Shaft Front)
35789	35789-0C450	Race, Thrust Bearing (Input Shaft Rear)
35789	90374-A0002	Bearing, Thrust Needle Roller

OEM	Part name	Category
35061-04010	Hub Sub-Assy, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35601-04010	Drum Sub-Assy, Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35603-0C010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35604-04010	Spring Sub-Assy, Direct Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35605-04010	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35612-04020	Piston, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35617-71010	Ring, Clutch Drum Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35631-71010	Hub, Clutch(For Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35633-04010	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35634-04010	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04010	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04020	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04030	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04040	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04050	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04060	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04070	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04080	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04090	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04100	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04110	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04120	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35635-04130	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35647-04010	Plate, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35652-04010	Piston, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35667-04010	Disk, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35668-04010	Balancer, Clutch, No.1	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35669-04010	Balancer, Clutch, No.2	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04010	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04020	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04030	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04040	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04050	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04060	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04070	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04080	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35675-04090	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35709-04010	Drum Sub-Assy, Sun Gear Input	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35787-0C010	Race, Thrust Bearing, No.2	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35789-04010	Race, Thrust Bearing (For Input Shaft Front)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35789-04020	Race, Thrust Bearing(For Forward Clutch Hob)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
35789-0C450	Race, Thrust Bearing (Input Shaft Rear)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0042	Ring, O (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0043	Ring, O (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0044	Ring, O (For Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0045	Ring, O(For Clutch Balancer)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0058	Ring, O (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90301-A0059	Ring, O (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90374-A0002	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90374-A0003	Bearing, Thrust Needle Roller	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90374-A0045	Bearing, Thrust Needle Roller (For Input Shaft Front)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90374-A0046	Bearing, Thrust Needle Roller(For Forward Clutch Hub)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90520-35003	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90520-99158	Ring, Hole Snap (For Forward Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90520-99159	Ring, Hole Snap(For Reverse Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
90520-A0038	Ring, Shaft Snap (For Direct Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([08.2015 - ] AC60E,AC60F (1508- )6FC)
