Search › Model › TRN225
TRN225

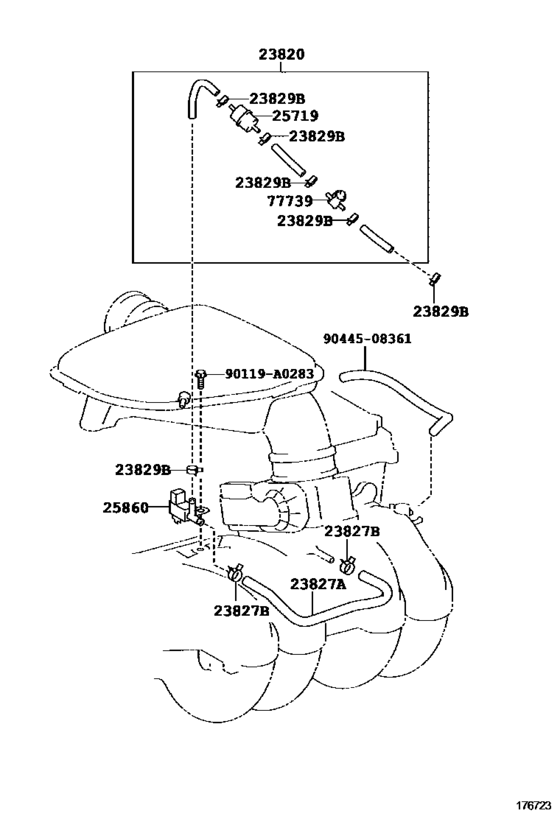

Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) 9
| # | OEM | Part name |
|---|---|---|
| 23820 | 23820-0C010 | Hose Assy, Fuel Vapor Feed |
| 23820 | 23820-0C011 | Hose Assy, Fuel Vapor Feed |
| 23827 | 23827-75280 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 25719 | 25719-50040 | Tank, Vacuum Surge |
| 25860 | 90910-12262 | Valve, Duty Vacuum Switching |
| 77739 | 77739-06010 | Valve, Evap Service Port |
| 90119 | 90119-A0283 | New Genuine Part |
| 9044508361 | 90445-08361 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 23820-0C010 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 23820-0C011 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 23827-75280 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 25719-50040 | Tank, Vacuum Surge | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 77739-06010 | Valve, Evap Service Port | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 90119-A0283 | New Genuine Part | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 90445-08361 | New Genuine Part | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 90910-12262 | Valve, Duty Vacuum Switching | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([09.2004 - 09.2005] (0409-0509)2TRFE) |
