TRN220

Toyota TACOMA · 2004 · 4,085 parts · 229 categories
TRN220 ×

← Back to categories

4,085 items

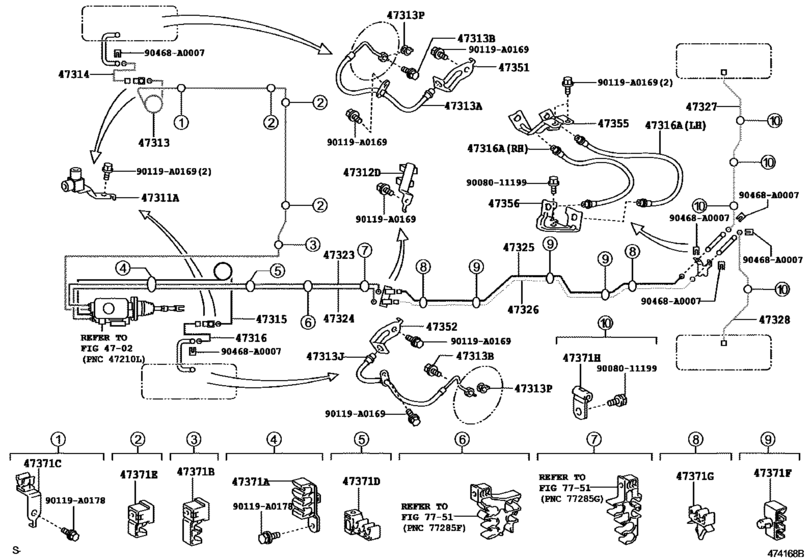

Brake Tube & Clamp ([09.2004 - 05.2008] W(VSC) (0409-0805)TRN220) 66
#OEMPart name
47311 90412-10247 Way(For Front Brake Tube)
47311 90412-10289 Way(For Front Brake Tube)
47311 90412-A0008 Way(For Front Brake Tube)
47312 90412-10248 Way, 2(For Rear Brake Tube)
47312 90412-10276 Way, No.1(For Front Brake Tube)
47313 47313-04190 Tube, Front Brake, No.3
47313 47313-04200 Tube, Front Brake, No.3
47313 47313-04210 Tube, Front Brake, No.3
47313 47313-04241 Tube, Front Brake, No.3
47313 90947-A2002 Hose, Flexible, No.1(For Front)
47313 90947-A2062 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-A2001 Hose, Flexible, No.2(For Front)
47313 90947-A2065 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-04140 Tube, Front Brake, No.4
47314 47314-04141 Tube, Front Brake, No.4
47315 47315-04160 Tube, Front Brake, No.5
47315 47315-04170 Tube, Front Brake, No.5
47315 47315-04180 Tube, Front Brake, No.5
47315 47315-04191 Tube, Front Brake, No.5
47316 47316-04140 Tube, Front Brake, No.6
47316 47316-04141 Tube, Front Brake, No.6
47316 90947-A2005 Hose, Flexible(For Rear Brake Tube)
47316 90947-A2006 Hose, Flexible(For Rear Brake Tube)
47316 90947-A2064 Hose, Flexible(For Rear Brake Tube)
47316 90947-A2067 Hose, Flexible(For Rear Brake Tube)
47323 47323-04160 Tube, Rear Brake, No.3
47323 47323-04170 Tube, Rear Brake, No.3
47323 47323-04180 Tube, Rear Brake, No.3
47323 47323-04191 Tube, Rear Brake, No.3
47324 47324-04120 Tube, Rear Brake, No.4
47324 47324-04130 Tube, Rear Brake, No.4
47324 47324-04140 Tube, Rear Brake, No.4
47324 47324-04151 Tube, Rear Brake, No.4
47325 47325-04160 Tube, Rear Brake, No.5
47325 47325-04190 Tube, Rear Brake, No.5
47325 47325-04191 Tube, Rear Brake, No.5
47326 47326-04130 Tube, Rear Brake, No.6
47326 47326-04160 Tube, Rear Brake, No.6
47326 47326-04161 Tube, Rear Brake, No.6
47327 47327-04050 Tube, Rear Brake, No.7
47327 47327-04051 Tube, Rear Brake, No.7
47328 47328-04010 Tube, Rear Brake, No.8
47328 47328-04011 Tube, Rear Brake, No.8
47351 47351-04030 Bracket, Flexible Hose(For Front Rh)
47352 47352-04030 Bracket, Flexible Hose(For Front Lh)
47355 47355-04020 Bracket, Flexible Hose, No.2(For Front)
47356 47356-04010 Bracket, Flexible Hose, No.6
47356 47356-04011 Bracket, Flexible Hose, No.6
47371 90949-A1023 Clamp, Brake Tube, No.1
47371 90949-A4002 Clamp, Brake Tube, No.1
47371 90949-A4003 Clamp, Brake Tube, No.1
47371 90949-A1024 Clamp, Brake Tube, No.6
47371 90949-A4004 Clamp, Brake Tube, No.6
47371 90949-A4005 Clamp, Brake Tube, No.6
47371 90949-A4008 Clamp, Brake Tube, No.1
47371 90949-01C95 Clamp, Brake Tube, No.8
47371 90949-A4006 Clamp, Brake Tube, No.9
47371 90949-A1006 Clamp, Brake Tube, No.10
47371 90469-A0004 Clamp, Brake Tube, No.7
47371 90461-08690 Clamp, Brake Tube, No.9
90119 90119-A0169 New Genuine Part
90119 90119-A0178 New Genuine Part
90468 90468-A0007 New Genuine Part
9008011199 90080-11199 Bolt (For Transmission Control Cable Bracket)
