TRN215

Toyota HILUX-SURF-4RUNNER · 2004 · 5,151 parts · 209 categories

← Back to categories

5,151 items

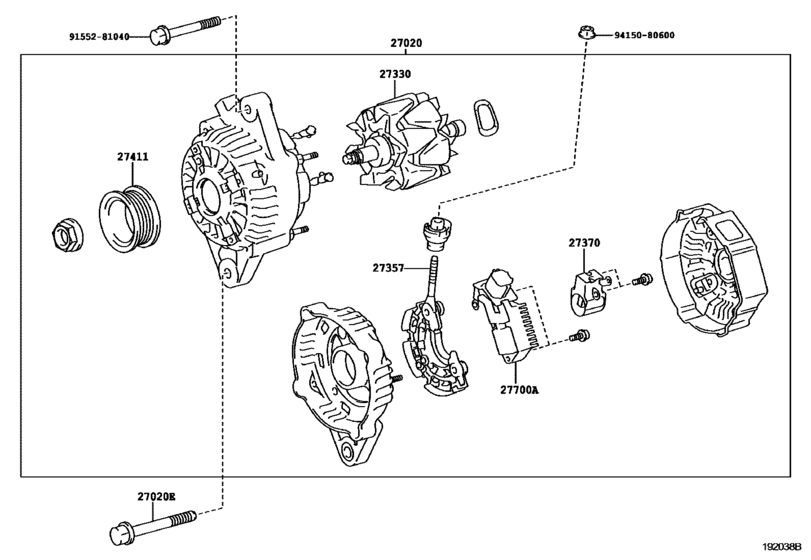

Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE) 11

#	OEM	Part name
27020	27060-75360	Alternator Assy
27020	27060-75361	Alternator Assy
27020	91552-81085	Bolt(For Alternator)
27330	27330-30130	Rotor Assy, Alternator
27330	27330-62220	Rotor Assy, Alternator
27357	27357-22200	Holder, Alternator, W/rectifier
27370	27370-23120	Holder Assy, Alternator Brush
27411	27411-31200	Pulley, Alternator
27700	27700-28080	Regulator Assy, Generator
9155281040	91552-81040	Bolt(For Alternator)
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
27060-75360	Alternator Assy	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27060-75361	Alternator Assy	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27330-30130	Rotor Assy, Alternator	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27330-62220	Rotor Assy, Alternator	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27357-22200	Holder, Alternator, W/rectifier	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27370-23120	Holder Assy, Alternator Brush	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27411-31200	Pulley, Alternator	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
27700-28080	Regulator Assy, Generator	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
91552-81040	Bolt(For Alternator)	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
91552-81085	Bolt(For Alternator)	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)
94150-80600	NUT FLANGE	Alternator ([08.2004 - ] 12V 80A (0408- )2TRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 209
Collected: 2026-08-03
