TRJ155

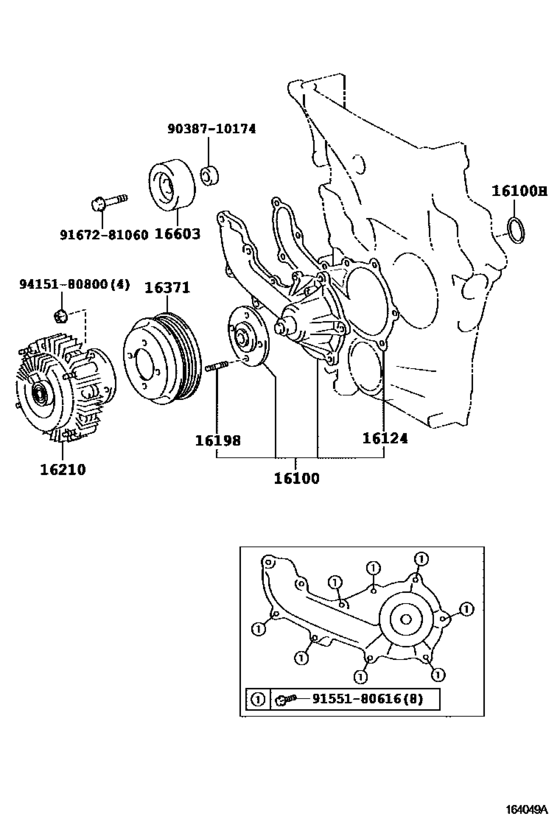

Water Pump ([08.2009 - ] (0908- )2TRFE) 13
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-79445 | Pump Assy, Engine Water |
| 16100 | 90301-25020 | Ring, O(For Water Pump) |
| 16100 | 90301-28012 | Ring, O(For Water Pump) |
| 16124 | 16124-75030 | Gasket, Water Pump Cover |
| 16198 | 92122-80818 | Bolt, Stud(For Water Pump Pulley Seat) |
| 16210 | 16210-75100 | Coupling Assy, Fluid |
| 16371 | 16371-75040 | Pulley, Fan |
| 16603 | 16603-31040 | Pulley Sub-Assy, Idler, No.1 |
| 16603 | 16603-31050 | Pulley Sub-Assy, Idler, No.1 |
| 9038710174 | 90387-10174 | COLLAR |
| 9155180616 | 91551-80616 | BOLT FLANGE |
| 9167281060 | 91672-81060 | BOLT FLANGE |
| 9415180800 | 94151-80800 | Nut (For Transmission Control Cable) |
| OEM | Part name | Category |
|---|---|---|
| 16100-79445 | Pump Assy, Engine Water | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 16124-75030 | Gasket, Water Pump Cover | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 16210-75100 | Coupling Assy, Fluid | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 16371-75040 | Pulley, Fan | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 16603-31040 | Pulley Sub-Assy, Idler, No.1 | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 16603-31050 | Pulley Sub-Assy, Idler, No.1 | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 90301-25020 | Ring, O(For Water Pump) | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 90301-28012 | Ring, O(For Water Pump) | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 90387-10174 | COLLAR | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 91551-80616 | BOLT FLANGE | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 91672-81060 | BOLT FLANGE | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 92122-80818 | Bolt, Stud(For Water Pump Pulley Seat) | Water Pump ([08.2009 - ] (0908- )2TRFE) |
| 94151-80800 | Nut (For Transmission Control Cable) | Water Pump ([08.2009 - ] (0908- )2TRFE) |
