TRJ155

Toyota LAND-CRUISER-PRADO · 2009 · 6,119 parts · 300 categories
TRJ155 ×

← Back to categories

6,119 items

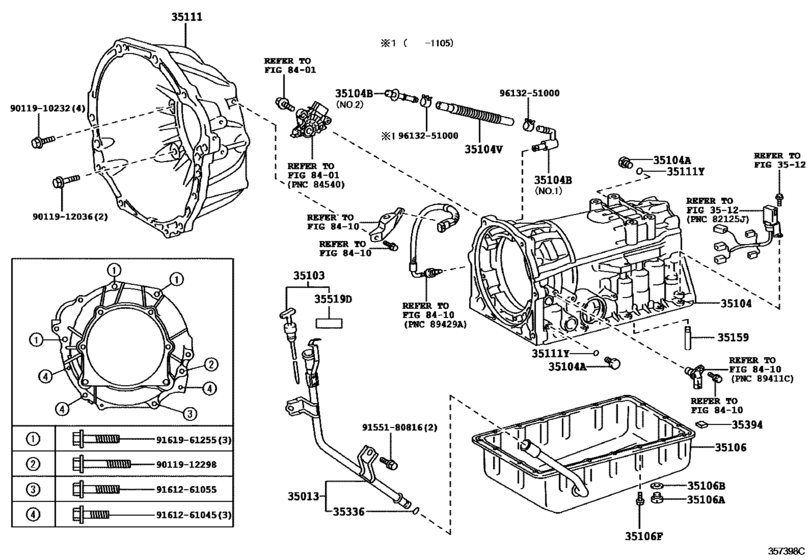

Transmission Case & Oil Pan (Atm) ([08.2009 - 06.2015] A343F (0908-1506)4FC) 27
#OEMPart name
35013 35013-60310 Tube Sub-Assy, Transmission Oil Filler
35103 35103-60270 Gage Sub-Assy, Transmission Oil Level
35104 35104-35022 Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90930-03098 Plug, Breather, No.1 (Atm)
35104 90930-03188 Plug, Breather, No.1 (Atm)
35104 90930-03211 Plug, Breather, No.1 (Atm)
35104 90447-11052 Hose (For Breather Plug)
35106 35106-60230 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35106 90119-06513 Bolt (For Automatic Transmission Oil Pan)
35111 35111-71010 Housing, Automatic Transmission
35111 90301-06196 O Ring, Transaxle Case, No.1
35159 35159-30010 Gasket, Brake Drum
35336 90301-09011 Ring, O (For Transmission Oil Filler Tube)
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35519 35519-41010 Label, Automatic Transmission Information
9011910232 90119-10232 Bolt (For Transmission Housing & Case Setting)
9011912036 90119-12036 Bolt (For Transmission Housing & Case Setting)
9011912298 90119-12298 New Genuine Part
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9161261045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161261055 91612-61055 Bolt (For Transfer Case)
9161961255 91619-61255 Bolt(For Transaxle & Engine Setting)
9613251000 96132-51000 Clip Or Clamp(For Ventilation Hose)
