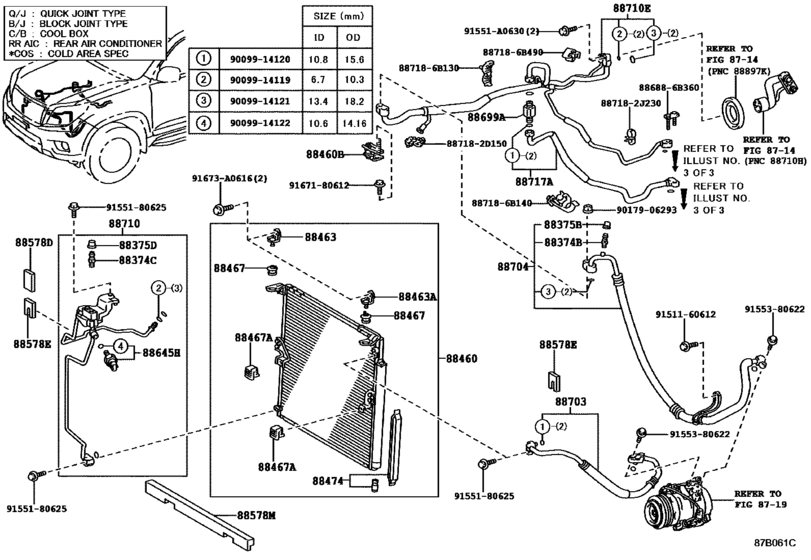

Heating & Air Conditioning - Cooler Piping ([08.2009 - 06.2015] FRONT(B/J & W(C/B)) (0908-1506)TRJ15#) 45
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88460 88460-60440 Condenser Assy, Cooler
88460 88688-6B140 Bracket, Cooler Condenser, No.1
88463 88463-60010 Bracket, Cooler Condenser, No.1
88463 88463-60020 Bracket, Cooler Condenser, No.2
88467 88467-28050 Cushion, Cooler Condenser, No.1
88467 88467-35080 Cushion, Cooler Condenser, No.1
88474 88474-17010 Dryer, Cooler
88578 88578-60460 Packing, Cooler Pipe, No.1
88578 88578-60550 Packing, Cooler Pipe, No.1
88578 88578-60461 Packing, Cooler Pipe, No.1
88578 88578-60470 Packing, Cooler Pipe, No.2
88578 88578-60471 Packing, Cooler Pipe, No.2
88578 88578-60540 Packing, Cooler Pipe, No.2
88578 88578-60480 Packing, Cooling Pipe, No.3
88645 88645-26030 Switch, Pressure No.1
88699 88699-60010 Valve, Air
88703 88703-60250 Hose Sub-Assy, Discharge
88703 88703-60260 Hose Sub-Assy, Discharge
88704 88704-60470 Hose Sub-Assy, Suction
88704 88704-60480 Hose Sub-Assy, Suction
88710 88710-60B10 Tube Assy, Air Conditioner - AIRCONDITIONER
88710 88710-60D40 Tube & Accessory Assy, Air Conditioner
88717 88717-6B190 Pipe, Cooler Refrigerant Suction, A
88717 88717-6B220 Pipe, Cooler Refrigerant Suction, A
91551 91551-A0630 New Genuine Part
91673 91673-A0616 BOLT, FLANGE
886886 88688-6B360 Bracket, Cooler Diaphragm
887182 88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1
887182 88718-2J230 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B130 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B140 Pipe, Cooler Refrigerant Suction, No.2
887186 88718-6B490 Pipe, Cooler Refrigerant Suction, No.2
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9017906293 90179-06293 NUT
9151160612 91511-60612 BOLT
9155180625 91551-80625 Bolt(For Camshaft Housing Set)
9155380622 91553-80622 BOLT FLANGE
9167180612 91671-80612 Bolt
