TRJ155

Toyota LAND-CRUISER-PRADO · 2009 · 6,119 parts · 300 categories

← Back to categories

6,119 items

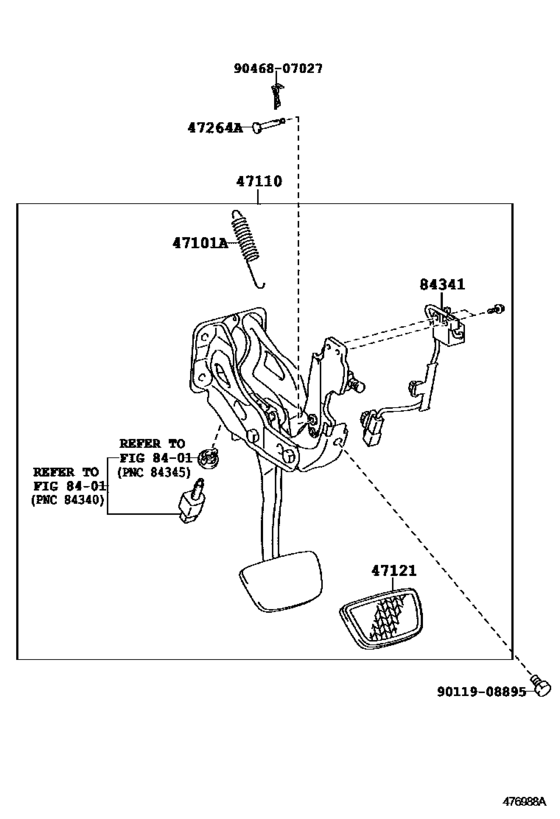

Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#) 11

#	OEM	Part name
47101	90507-20034	Spring(For Brake Pedal Return)
47110	47110-60312	Support Assy, Brake Pedal
47110	47110-60313	Support Assy, Brake Pedal
47110	47110-60310	Support Assy, Brake Pedal
47110	47110-60311	Support Assy, Brake Pedal
47121	47121-50020	Pad, Brake Pedal
47264	90249-06180	Pin(For Push Rod)
84341	84341-60020	Switch, Brake Pedal Road Sensing
84341	84341-60021	Switch, Brake Pedal Road Sensing
9011908895	90119-08895	BOLT WWASHER
9046807027	90468-07027	Clip(For Push Rod Clevis Pin)

OEM	Part name	Category
47110-60310	Support Assy, Brake Pedal	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
47110-60311	Support Assy, Brake Pedal	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
47110-60312	Support Assy, Brake Pedal	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
47110-60313	Support Assy, Brake Pedal	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
47121-50020	Pad, Brake Pedal	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
84341-60020	Switch, Brake Pedal Road Sensing	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
84341-60021	Switch, Brake Pedal Road Sensing	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
90119-08895	BOLT WWASHER	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
90249-06180	Pin(For Push Rod)	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
90468-07027	Clip(For Push Rod Clevis Pin)	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)
90507-20034	Spring(For Brake Pedal Return)	Brake Pedal & Bracket ([08.2009 - ] (0908- )LJ150,TRJ15#)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 300
Collected: 2026-08-02
