Search › Model › TRJ150
TRJ150

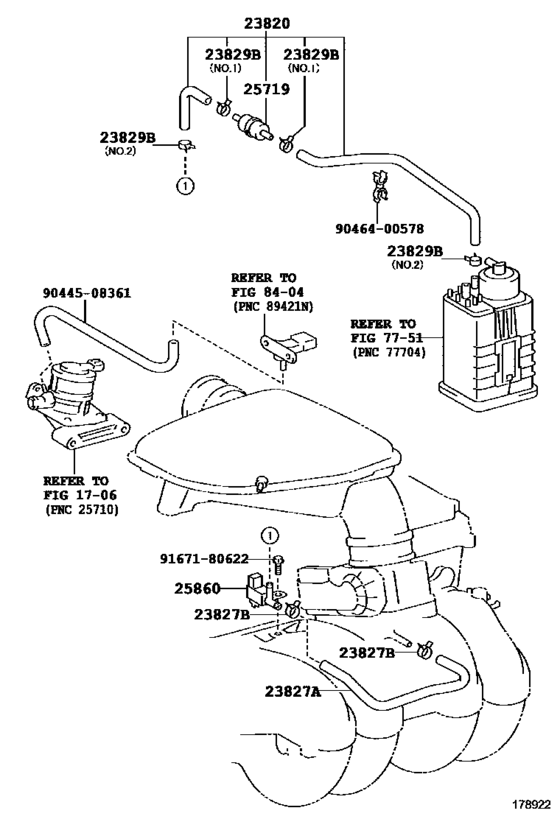

Vacuum Piping ([06.2015 - ] (1506- )2TRFE) 11
| # | OEM | Part name |
|---|---|---|
| 23820 | 23820-75150 | Hose Assy, Fuel Vapor Feed |
| 23827 | 23827-75280 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 90467-13128 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 23829 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23829 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23829 | 96132-51100 | Clip (For Hose) |
| 25719 | 25719-50040 | Tank, Vacuum Surge |
| 25860 | 90910-12280 | Valve, Duty Vacuum Switching |
| 9044508361 | 90445-08361 | New Genuine Part |
| 9046400578 | 90464-00578 | CLAMP |
| 9167180622 | 91671-80622 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 23820-75150 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 23827-75280 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 25719-50040 | Tank, Vacuum Surge | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90445-08361 | New Genuine Part | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90464-00578 | CLAMP | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90467-13128 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 90910-12280 | Valve, Duty Vacuum Switching | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 91671-80622 | Bolt | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([06.2015 - ] (1506- )2TRFE) |
