TRJ150

Toyota LAND-CRUISER-PRADO · 2009 · 5,463 parts · 250 categories

5,463 items

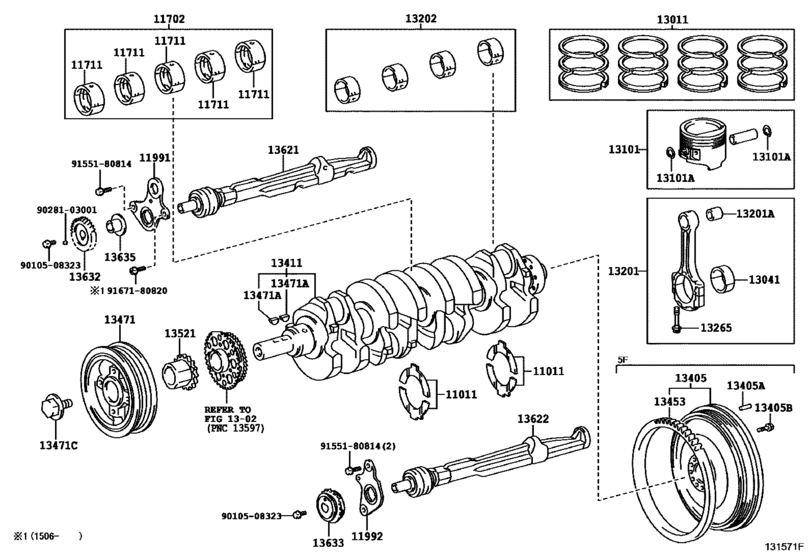

Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE) 45

#	OEM	Part name
11011	11011-75021	Washer Set, Crankshaft Thrust
11011	11011-75020	Washer Set, Crankshaft Thrust
11702	11704-75033	Bearing Set, Crankshaft
11711	11701-75033-01	Bearing, Crankshaft
11711	11701-75033-02	Bearing, Crankshaft
11711	11701-75033-03	Bearing, Crankshaft
11711	11701-75033-04	Bearing, Crankshaft
11711	11701-75033-05	Bearing, Crankshaft
11991	11991-75010	Washer, Balanceshaft Thrust
11992	11992-75010	Washer, Balanceshaft Thrust, No.2
13011	13011-75200	Ring Set, Piston
13011	13013-75200	Ring Set, Piston
13041	13041-75052-04	Bearing, Connecting Rod
13041	13041-75070-04	Bearing, Connecting Rod
13041	13041-75052-05	Bearing, Connecting Rod
13041	13041-75070-05	Bearing, Connecting Rod
13041	13041-75052-06	Bearing, Connecting Rod
13041	13041-75070-06	Bearing, Connecting Rod
13101	13101-75200	Piston Sub-Assy, W/pin
13101	13103-75200	Piston Sub-Assy, W/pin
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-79577	Rod Sub-Assy, Connecting
13201	13201-79578	Rod Sub-Assy, Connecting
13201	13201-79616	Rod Sub-Assy, Connecting
13201	13201-79617	Rod Sub-Assy, Connecting
13201	90999-73144	Bush(For Connecting Rod Small End)
13202	13204-75052	Bearing Set, Connecting Rod
13202	13204-75070	Bearing Set, Connecting Rod
13265	13265-28010	Bolt, Connecting Rod
13265	13265-28020	BOLT CONNECTING ROD
13411	13401-75021	Crankshaft
13411	13401-75041	Crankshaft
13471	13408-75050	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90105-16041	Bolt(For Crankshaft Pulley Set)
13521	13521-75021	Gear Or Sprocket, Crankshaft Timing
13621	13621-75020	Balanceshaft, No.1
13622	13622-75020	Balanceshaft, No.2
13632	13632-75010	Gear, Balanceshaft Driven, No.1
13633	13633-75010	Gear, Balanceshaft Driven, No.2
13635	13635-75010	Spacer, Balanceshaft Thrust
9010508323	90105-08323	BOLT WASHER BASED
9028103001	90281-03001	KEY SLIDING
9155180814	91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
11011-75020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11011-75021	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11701-75033-01	Bearing, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11701-75033-02	Bearing, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11701-75033-03	Bearing, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11701-75033-04	Bearing, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11701-75033-05	Bearing, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11704-75033	Bearing Set, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11991-75010	Washer, Balanceshaft Thrust	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
11992-75010	Washer, Balanceshaft Thrust, No.2	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13011-75200	Ring Set, Piston	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13013-75200	Ring Set, Piston	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75052-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75052-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75052-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75070-04	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75070-05	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13041-75070-06	Bearing, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13101-75200	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13103-75200	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13201-79577	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13201-79578	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13201-79616	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13201-79617	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13204-75052	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13204-75070	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13265-28010	Bolt, Connecting Rod	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13265-28020	BOLT CONNECTING ROD	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13401-75021	Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13401-75041	Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13408-75050	Pulley, Crankshaft	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13521-75021	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13621-75020	Balanceshaft, No.1	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13622-75020	Balanceshaft, No.2	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13632-75010	Gear, Balanceshaft Driven, No.1	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13633-75010	Gear, Balanceshaft Driven, No.2	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
13635-75010	Spacer, Balanceshaft Thrust	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90105-08323	BOLT WASHER BASED	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90105-16041	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90281-03001	KEY SLIDING	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
90999-73144	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
91551-80814	Bolt, Hexagon (For Rear Spring Seat Bolt)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Crankshaft & Piston ([08.2009 - ] (0908- )2TRFE)
