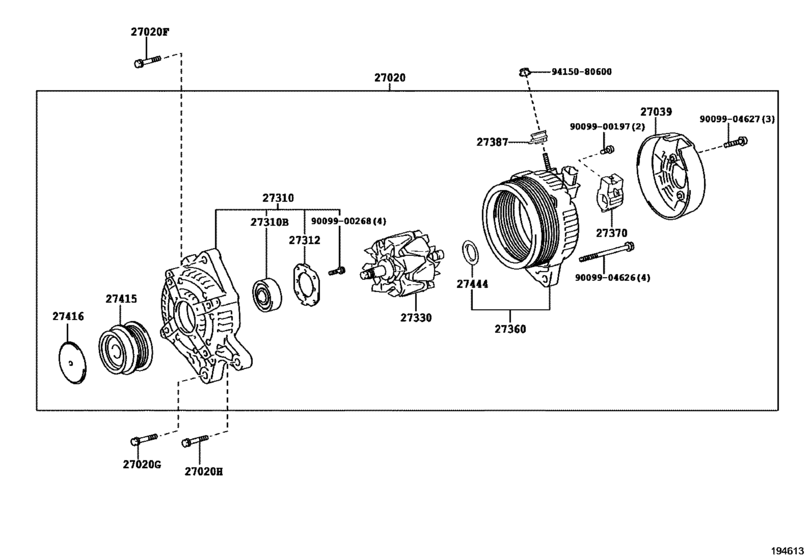

| 27039-37220 |
Cover, Alternator Rear End |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27060-75550 |
Alternator Assy |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27310-75510 |
Frame Assy, Drive End, Alternator |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27330-47330 |
Rotor Assy, Alternator |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27360-75510 |
Coil Assy, Alternator |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27370-58460 |
Holder Assy, Alternator Brush |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27415-0W063 |
Pulley, Alternator W/clutch |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27416-0W050 |
Cap, Alternator Pulley |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 27444-21190 |
Packing, Alternator Bearing Cover |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 90099-00197 |
Screw |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 90099-04626 |
Bolt(For Alternator Coil) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 90099-04627 |
Bolt(For Alternator Rear End Cover) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 91552-81040 |
Bolt(For Alternator) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 91552-81060 |
Bolt, No.3(For Alternator) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 91552-81085 |
Bolt(For Alternator) |
Alternator ([06.2015 - ] (1506- )2TRFE) |
| 94150-80600 |
NUT FLANGE |
Alternator ([06.2015 - ] (1506- )2TRFE) |
