TRH200

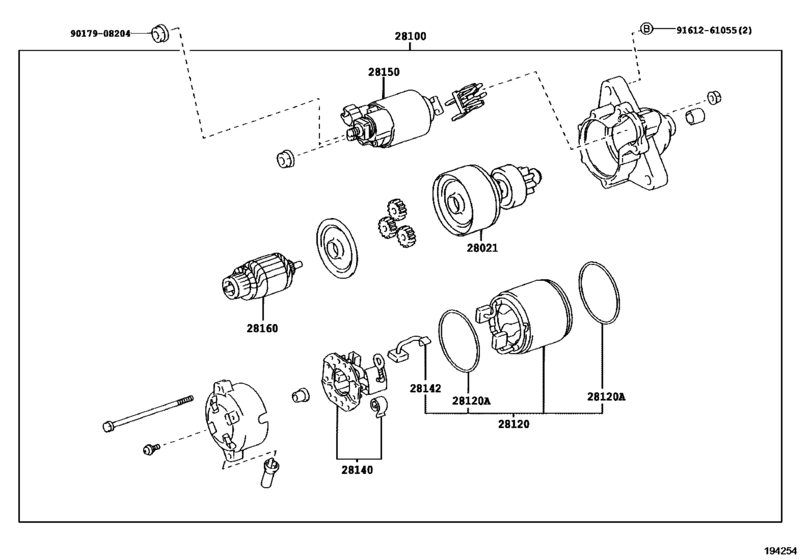

Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) 11
| # | OEM | Part name |
|---|---|---|
| 28021 | 28021-70020 | Clutch Sub-Assy, Starter Center Bearing |
| 28100 | 28100-75151 | Starter Assy |
| 28120 | 28120-40130 | Yoke Assy, Starter |
| 28120 | 90099-14092 | Ring, O(For Starter Yoke) |
| 28140 | 28140-70020 | Holder Assy, Starter Brush |
| 28142 | 28142-70020 | Brush, Starter |
| 28150 | 28150-75150 | Switch Assy, Magnet Starter |
| 28160 | 28160-70050 | Armature Assy, Starter |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161261055 | 91612-61055 | Bolt (For Transfer Case) |
| OEM | Part name | Category |
|---|---|---|
| 28021-70020 | Clutch Sub-Assy, Starter Center Bearing | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28100-75151 | Starter Assy | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28120-40130 | Yoke Assy, Starter | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28140-70020 | Holder Assy, Starter Brush | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28142-70020 | Brush, Starter | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28150-75150 | Switch Assy, Magnet Starter | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 28160-70050 | Armature Assy, Starter | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 90080-18070 | NUT, WWASHER | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 90099-14092 | Ring, O(For Starter Yoke) | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 90179-08204 | Nut | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
| 91612-61055 | Bolt (For Transfer Case) | Starter ([12.2013 - ] 12V 1.0KW (1312- )1TRFE) |
