TRH200

Toyota HIACE · 2004 · 3,811 parts · 329 categories
TRH200 ×

← Back to categories

3,811 items

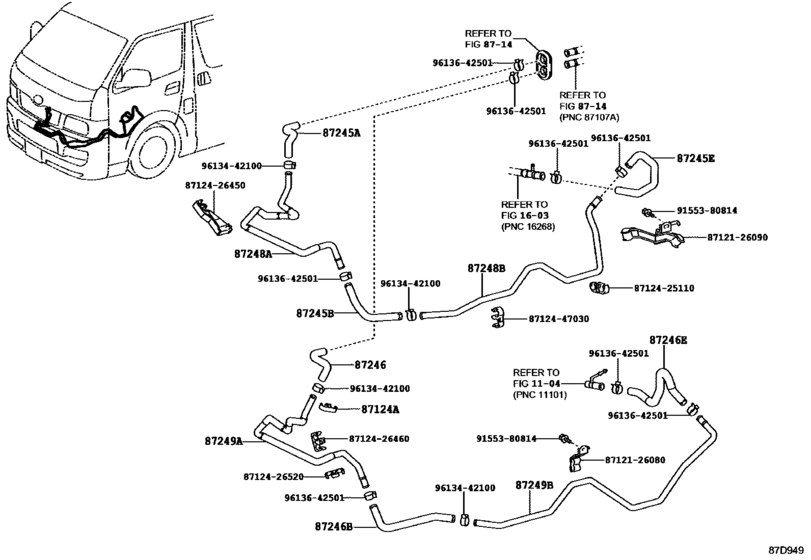

Heating & Air Conditioning - Water Piping ([01.2015 - 12.2016] FRONT (1312-1612)TRH20#..RHD..SRF..4FC,5F ; (1501-1612 )TRH200,201..6FC) 22
#OEMPart name
87124 87124-25110 Clamp, Heater
87245 87245-26A90 Hose, Heater Water, Inlet A
87245 87245-26B40 Hose, Heater Water, Inlet B
87245 87245-26B60 Hose, Heater Water, Inlet E
87246 87245-26D60 Hose, Heater Water, Outlet
87246 87245-26B50 Hose, Heater Water, Outlet B
87246 87245-26B70 Hose, Heater Water, Outlet E
87248 87248-26400 Pipe, Heater Water Inlet, A
87248 87248-26480 Pipe, Heater Water Inlet, B
87248 87248-26B00 Pipe, Heater Water Inlet, B
87249 87248-26410 Pipe, Heater Water Outlet, A
87249 87248-26490 Pipe, Heater Water Outlet, B
87249 87248-26B10 Pipe, Heater Water Outlet, B
8712126080 87121-26080 Bracket, Heater, Front Rh
8712126090 87121-26090 Bracket, Heater, Front Rh
8712426450 87124-26450 Clamp, Heater
8712426460 87124-26460 Clamp, Heater
8712426520 87124-26520 Clamp, Heater
8712447030 87124-47030 Clamp, Heater
9155380814 91553-80814 BOLT FLANGE
9613442100 96134-42100 Clip(For Water By-Pass Hose Assy)
9613642501 96136-42501 Clip(For Ventilation Hose)
