TRB70

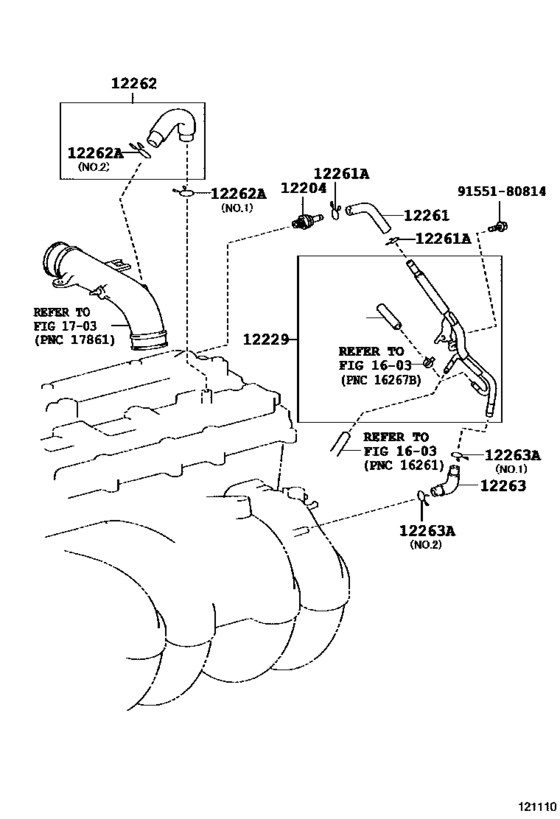

Ventilation Hose ([01.2017 - ] (1701- )2TRFE) 11
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-0C010 | Valve Sub-Assy, Ventilation |
| 12229 | 12229-75050 | Pipe, Ventilation |
| 12261 | 12261-75100 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-75190 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-24038 | Clip(For Ventilation Tube) |
| 12263 | 12263-75070 | Hose, Ventilation, No.3 |
| 12263 | 90467-15120 | Clip Or Clamp(For Ventilation Hose) |
| 9155180814 | 91551-80814 | Bolt, Hexagon (For Rear Spring Seat Bolt) |
| OEM | Part name | Category |
|---|---|---|
| 12204-0C010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 12229-75050 | Pipe, Ventilation | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 12261-75100 | Hose, Ventilation | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 12262-75190 | Hose, Ventilation, No.2 | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 12263-75070 | Hose, Ventilation, No.3 | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 90467-15120 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 90467-24038 | Clip(For Ventilation Tube) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
| 91551-80814 | Bolt, Hexagon (For Rear Spring Seat Bolt) | Ventilation Hose ([01.2017 - ] (1701- )2TRFE) |
