Search › Model › TRB70

TRB70

Toyota COASTER · 2017 · 3,593 parts · 234 categories

← Back to categories

3,593 items

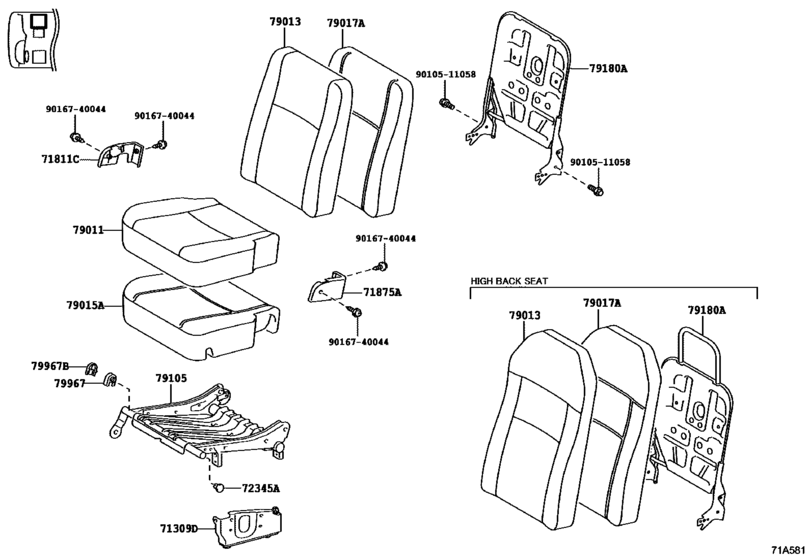

Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN) 18

#	OEM	Part name
71309	71309-36110	Leg Sub-Assy, Rear Seat, Lh
71811	71811-36120-C0	Cover, Reclining Adjuster, Rh
71875	71812-36380-C0	Cover, Reclining Adjuster Inside, Rh
72345	72345-36010	Pipe, Reclining Connecting
79011	79011-36640-E3	Cover Sub-Assy, No.1 Seat Cushion, Rh
79011	79011-36630-B3	Cover Sub-Assy, No.1 Seat Cushion, Rh
79013	79013-36860-E0	Cover Sub-Assy, No.1 Seat Back, Rh
79013	79013-36670-B5	Cover Sub-Assy, No.1 Seat Back, Rh
79015	79135-36200	Pad Sub-Assy, No.1 Seat Cushion, Rh
79017	79175-36240	Pad Sub-Assy, No.1 Seat Back, Rh
79017	79175-36190	Pad Sub-Assy, No.1 Seat Back, Rh
79105	79105-36B30	Leg Sub-Assy, No.1 Seat, Rh
79180	79280-36240	Spring Assy, No.1 Seat Back, Rh
79180	79290-36210	Spring Assy, No.1 Seat Back, Rh
79967	79967-36180-C0	Cover, Rear Seat Leg Side, No.4
79967	79967-36170-C0	Cover, Rear Seat Leg Side No.2
9010511058	90105-11058	BOLT FLANGE
9016740044	90167-40044	BOLT

OEM	Part name	Category
71309-36110	Leg Sub-Assy, Rear Seat, Lh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
71811-36120-C0	Cover, Reclining Adjuster, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
71812-36380-C0	Cover, Reclining Adjuster Inside, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
72345-36010	Pipe, Reclining Connecting	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79011-36630-B3	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79011-36640-E3	Cover Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79013-36670-B5	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79013-36860-E0	Cover Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79105-36B30	Leg Sub-Assy, No.1 Seat, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79135-36200	Pad Sub-Assy, No.1 Seat Cushion, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79175-36190	Pad Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79175-36240	Pad Sub-Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79280-36240	Spring Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79290-36210	Spring Assy, No.1 Seat Back, Rh	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79967-36170-C0	Cover, Rear Seat Leg Side No.2	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
79967-36180-C0	Cover, Rear Seat Leg Side, No.4	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
90105-11058	BOLT FLANGE	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)
90167-40044	BOLT	Seat & Seat Track ([01.2017 - ] REAR SEAT(RH SIDE) NO.1 (1701- )LHD..GCC,GEN)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 234
Collected: 2026-08-02
