| 87124-36810 |
Clamp, Heater |

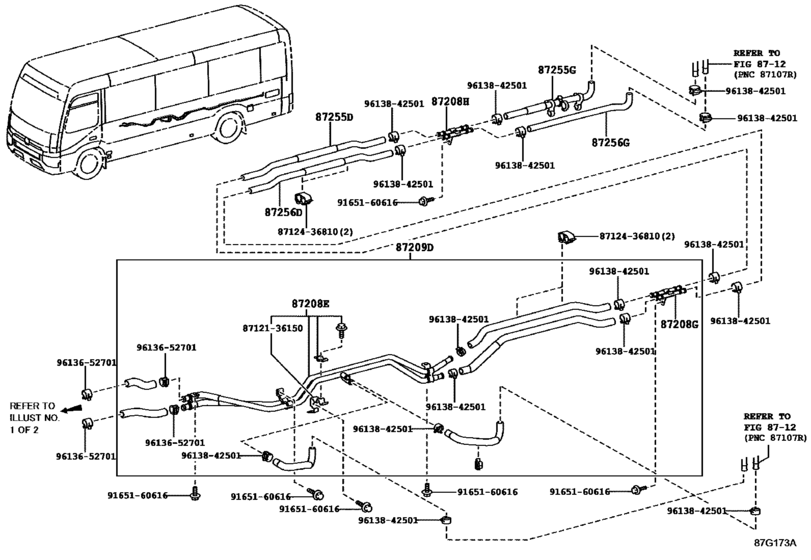

Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87208-36G70 |
Pipe Sub-Assy, Heater Water, G |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87208-36G90 |
Pipe Sub-Assy, Heater Water, E |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87209-36F80 |
Hose Sub-Assy, Water, D |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87245-36K20 |
Hose, Rear Heater Water Inlet, D |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87245-36M40 |
Hose, Rear Heater Water Inlet, G |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 87245-36M50 |
Hose, Rear Heater Water Outlet, G |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 91651-60616 |
BOLT |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 96136-52701 |
Clamp Or Clip(For Water By-Pass Hose No.3) |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
| 96138-42501 |
Clip, Hose(For Radiator Hose Sub-Assy) |
Heating & Air Conditioning - Water Piping ([01.2017 - ] REAR (1701- )HZB70,TRB70..LHD) |
