Search › Model › TRB70

TRB70

Toyota COASTER · 2017 · 3,593 parts · 234 categories
TRB70 ×

← Back to categories

3,593 items

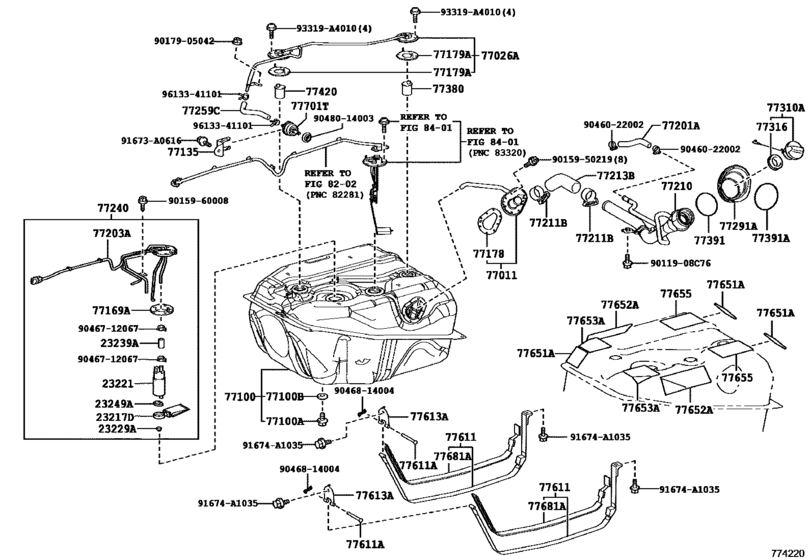

Fuel Tank & Tube ([01.2017 - ] FUEL TANK (1701- )TRB60,70) 52
#OEMPart name
23217 23217-46090 Filter, Fuel Pump
23221 23221-13010 Pump Assy, Fuel
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-11010 Hose, Fuel Pump
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
77011 77011-36020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77026 77026-36020 Tube Sub-Assy, Fuel Evaporation, No.1
77100 77001-3B272 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77135 77135-36040 Bracket, Check Valve
77169 77169-32010 Gasket, Fuel Pump Bracket
77178 77178-34010 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 95313-13017 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77203 77203-36240 Tube Sub-Assy, Fuel Suction
77210 77210-36010 Pipe Assy, Fuel Tank Filler
77211 90460-46005 Clamp (For Fuel Filler Pipe)
77213 77213-36090 Hose, Fuel Tank To Filler Pipe
77240 77240-36050 Tube Assy, Fuel Suction
77259 77259-36090 Hose, Fuel
77291 77291-36010 Shield, Fuel Tank Filler Pipe
77310 77300-12020 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-28020 Ring, Fuel Inlet Box
77391 77391-52040 Ring, Fuel Inlet Box
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77611 77601-36120 Band, Fuel Tank
77611 90240-08047 Pin (For Fuel Tank Band)
77613 77613-36030 Bracket, Fuel Tank Band, No.1
77651 77651-36130 Cushion, Fuel Tank, No.1
77652 77652-36010 Cushion, Fuel Tank, No.2
77653 77653-36010 Cushion, Fuel Tank, No.3
77655 77653-36020 Cushion, Fuel Tank, No.3
77681 77681-36050 Seat, Fuel Tank Band
77701 90917-10020 Valve, Check (For Main Fuel Tank)
91673 91673-A0616 BOLT, FLANGE
91674 91674-A1035 BOLT FLANGE
93319 93319-A4010 SCREW WWASHER
9011908 90119-08C76 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015960008 90159-60008 SCREW
9017905042 90179-05042 NUT
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046712067 90467-12067 Clip(For Fuel Pump Hose)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9048014003 90480-14003 New Genuine Part
9613341101 96133-41101 Clip(For Fuel Hose No.1)
