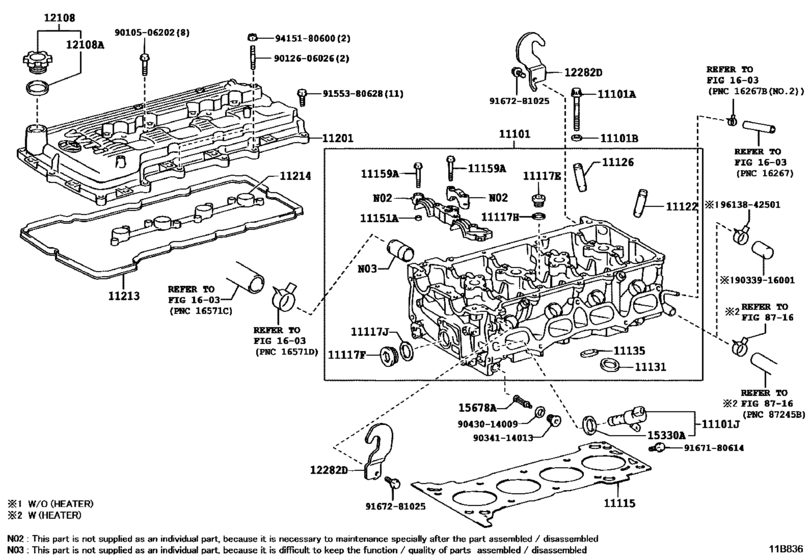

| 11101-75201 |
Head Sub-Assy, Cylinder |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11115-75052 |
Gasket, Cylinder Head |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11122-75020 |
Bush, Intake Valve Guide |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11123-75020 |
Bush, Intake Valve Guide |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11131-75081 |
Seat, Intake Valve |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11132-75081 |
Seat, Intake Valve |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11135-75100 |
Seat, Exhaust Valve |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11136-75100 |
Seat, Exhaust Valve |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11201-75073 |
Cover Sub-Assy, Cylinder Head |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11213-75041 |
Gasket, Cylinder Head Cover |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 11214-75012 |
Gasket, Cylinder Head Cover, No.2 |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 12180-55010 |
Cap Sub-Assy, Oil Filler |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 12281-75050 |
Hanger, Engine, No.1 |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 15330-75030 |
Valve Assy, Camshaft Timing Oil Control |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 15678-21010 |
Filter, Oil Control Valve |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90099-14137 |
Ring, O(For Cam Timing Oil Control Valve) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90105-06202 |
Bolt(For Cylinder Head Cover) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90119-07013 |
Bolt(For Camshaft Bearing Cap To Housing Rh, No.1) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90126-06026 |
Bolt, Stud(Manifold To Throttle Body) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90201-11034 |
Washer, Plate(For Cylinder Head Set) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90253-10006 |
Pin, Ring(For Camshaft Bearing Cap Setting) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90339-16001 |
Plug, Heater Water |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90341-14013 |
Plug, W/head Taper Screw, No.1 |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90341-20002 |
Plug, W/head Taper Screw, No.1 |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90341-32002 |
Plug, W/head Straight Screw, No.2 |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90430-14009 |
Gasket(For Cylinder Head Screw Plug) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90430-20004 |
Gasket(For Cylinder Head Screw Plug) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90430-32004 |
Gasket(For Cylinder Head Screw Plug) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90430-37004 |
Gasket(For Oil Filler Cap) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 90910-02187 |
Bolt(For Cylinder Head Set) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 91553-80628 |
BOLT FLANGE |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 91671-80614 |
Bolt (For Transmission Control Cable Bracket) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 91672-81025 |
Bolt, Center Support Bearing Bracket |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 94151-80600 |
Nut, Cap(For Cylinder Head Cover) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
| 96138-42501 |
Clip, Hose(For Radiator Hose Sub-Assy) |
Cylinder Head ([01.2017 - ] (1701- )2TRFE) |
