TRB70

Toyota COASTER · 2017 · 3,593 parts · 234 categories
TRB70 ×

← Back to categories

3,593 items

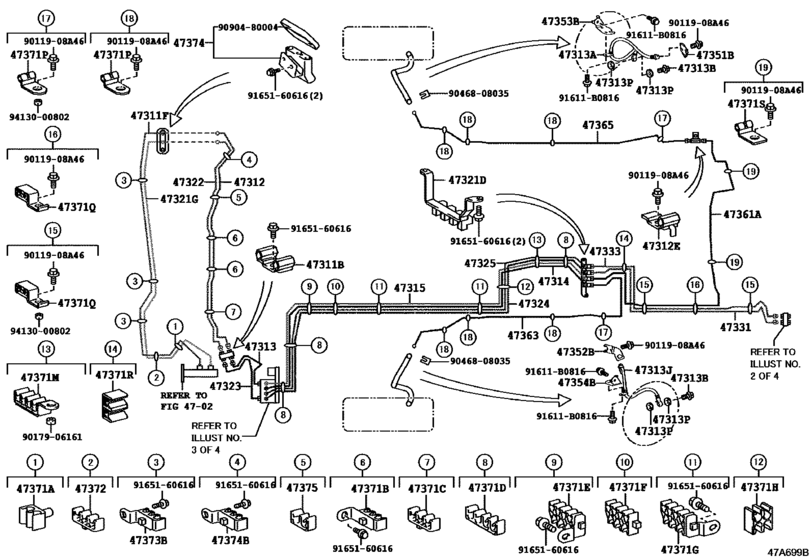

Brake Tube & Clamp ([01.2017 - ] FRONT BRAKE TUBE (1701- )TRB60,70,XZB70..LHD) 50
#OEMPart name
47311 90412-12068 Way, No.1(For Front Brake Tube)
47311 47311-36620 Tube, Front Brake, Frame No.1
47312 47312-36370 Tube, Front Brake, No.2
47312 90412-10311 Way, No.2(For Front Brake Tube)
47313 47313-36420 Tube, Front Brake, No.3
47313 90947-02H77 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-36450 Tube, Front Brake, No.4
47315 47315-36350 Tube, Front Brake, No.5
47321 90412-10310 Way, No.1(For Rear Brake Tube)
47321 47321-36440 Tube, Rear Brake, Frame No.1
47322 47322-36560 Tube, Rear Brake, No.2
47323 47323-36110 Tube, Rear Brake, No.3
47324 47324-36400 Tube, Rear Brake, No.4
47325 47325-36720 Tube, Rear Brake, No.5
47331 47331-36310 Tube, Rear Brake, No.10
47333 47333-36140 Tube, Rear Brake, No.12
47351 47351-36211 Bracket, Flexible Hose, No.1
47352 47352-36201 Bracket, Flexible Hose, No.2
47353 47353-36260 Bracket, Flexible Hose, No.3
47354 47354-36150 Bracket, Flexible Hose, No.4
47361 47361-36120 Tube, Front Brake, No.10
47363 47363-36110 Tube, Front Brake, No.12
47365 47365-36120 Tube, Front Brake, No.14
47371 90949-01E12 Clamp, Brake Tube, No.1
47371 90949-04067 Clamp, Brake Tube, No.5
47371 90949-01E53 Clamp, Brake Tube, No.6
47371 90949-01540 Clamp, Brake Tube, No.7
47371 90949-04071 Clamp, Brake Tube, No.8
47371 90949-01E52 Clamp, Brake Tube, No.9
47371 90949-04072 Clamp, Brake Tube, No.10
47371 90464-00876 Clamp, Brake Tube, No.1
47371 90949-04073 Clamp, Brake Tube, No.12
47371 90461-06112 Clamp, Brake Tube, No.6
47371 90949-01536 Clamp, Brake Tube, No.15
47371 90480-01620 Grommet, No.1(For Front Brake Tube)
47371 90461-08639 Clamp, Brake Tube, No.7
47373 90949-04066 Clamp, Brake Tube, No.3
47374 47307-36120 Connector, Tube
47375 90464-00920 Clamp, Brake Tube, No.1 - BRAKE TUBE, NO.7
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9017906161 90179-06161 Bolt, Union(For Clutch Accumulator)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9090480004 90904-80004 New Genuine Part
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
