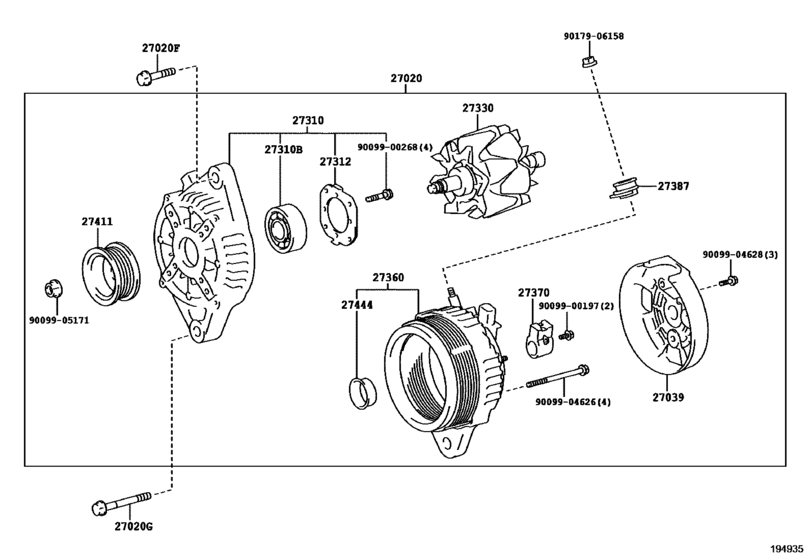

| 27039-37220 |
Cover, Alternator Rear End |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27060-75570 |
Alternator Assy |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27310-75510 |
Frame Assy, Drive End, Alternator |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27312-72100 |
Plate, Bearing Retainer, Alternator |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27330-47330 |
Rotor Assy, Alternator |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27360-75530 |
Coil Assy, Alternator |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27370-58460 |
Holder Assy, Alternator Brush |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27387-20130 |
Insulator, Terminal |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 27444-21190 |
Packing, Alternator Bearing Cover |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-00197 |
Screw |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-04626 |
Bolt(For Alternator Coil) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-04628 |
Bolt(For Alternator Rear End Cover) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-05171 |
Nut(For Alternator Pulley) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90099-10223 |
Bearing(For Alternator Drive End Frame) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 90179-06158 |
Nut, Rear Wiper Link Pivot, No.2 |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 91552-81040 |
Bolt(For Alternator) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
| 91552-81085 |
Bolt(For Alternator) |
Alternator ([01.2017 - ] 12V 80A (1701- )2TRFE) |
