Search › Model › TRB50

TRB50

Toyota COASTER · 2007 · 3,669 parts · 226 categories
TRB50 ×

← Back to categories

3,669 items

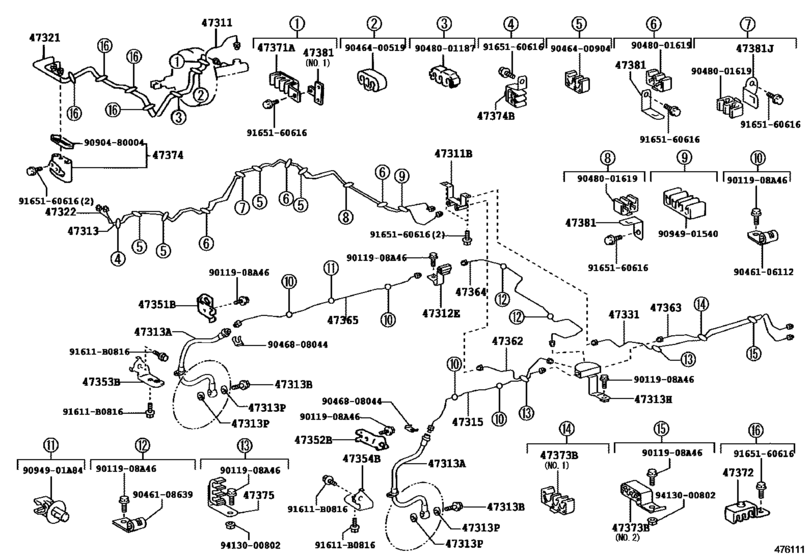

Brake Tube & Clamp ([08.2007 - ] W(DISC BRAKE) (0708- )BB42,50,HZB50,TRB40,50..LHD) 53
#OEMPart name
47311 47311-36562 Tube, Front Brake, No.1
47311 47311-36583 Tube, Front Brake, No.1
47311 90904-12083 Way, No.1(For Front Brake Tube)
47312 90904-12061 Way, No.2(For Front Brake Tube)
47312 90904-13517 Way, No.2(For Front Brake Tube)
47313 47313-36380 Tube, Front Brake, No.3
47313 90947-02B91 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90413-10317 Way, No.3(For Front Brake Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47315 47315-36330 Tube, Front Brake, No.5
47321 47321-36382 Tube, Rear Brake, No.1
47321 47321-36413 Tube, Rear Brake, No.1
47322 47322-36480 Tube, Rear Brake, No.2
47331 47331-36271 Tube, Rear Brake, No.10
47331 47331-36300 Tube, Rear Brake, No.10
47351 47351-36210 Bracket, Flexible Hose, No.1
47352 47352-36200 Bracket, Flexible Hose, No.2
47353 47353-36210 Bracket, Flexible Hose, No.3
47354 47354-36090 Bracket, Flexible Hose, No.4
47362 47362-36060 Tube, Front Brake, No.11
47362 47362-36070 Tube, Front Brake, No.11
47363 47363-36090 Tube, Front Brake, No.12
47364 47364-36120 Tube, Front Brake, No.13
47364 47364-36130 Tube, Front Brake, No.13
47365 47365-36021 Tube, Front Brake, No.14
47371 47371-36110 Clamp, Brake Tube, No.1
47371 47373-35040 Clamp, Brake Tube, No.1
47372 47371-36100 Clamp, Brake Tube, No.2
47373 90949-01536 Clamp, Brake Tube, No.15
47373 90949-01D59 Clamp, Brake Tube, No.3
47374 47307-36100 Connector, Tube
47374 47371-28020 Clamp, Brake Tube, No.2
47375 47371-36060 Clamp, Brake Tube, No.2
47381 47381-36120 Bracket, Brake Tube Clamp No.1
47381 47381-36160 Bracket, Brake Tube Clamp No.1
47381 47381-20320 Bracket, Brake Tube Clamp, No.2
91611 91611-B0816 Bolt
9011908 90119-08A46 BOLT WWASHER
9094901 90949-01A84 Clamp, Height Control Tube, No.3
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046108639 90461-08639 Clamp, Brake Tube, No.7
9046400519 90464-00519 CLAMP
9046400904 90464-00904 Clamp, Height Control Tube No.9
9046808044 90468-08044 CLIP
9046808044 90468-08035 CLIP
9048001187 90480-01187 New Genuine Part
9048001619 90480-01619 Clamp, Brake Tube, No.5
9090480004 90904-80004 New Genuine Part
9094901540 90949-01540 Clamp, Brake Tube, No.7
9165160616 91651-60616 BOLT
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
