Search › Model › TR15

TR15

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,686 parts · 166 categories

3,686 items

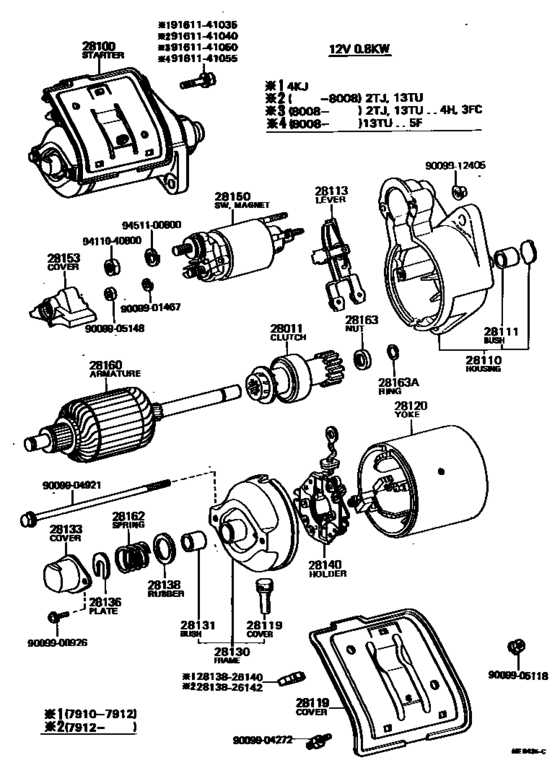

Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ) 50

#	OEM	Part name
28011	28011-15010	Clutch Sub-Assy, Starter
28011	28011-26042	Clutch Sub-Assy, Starter
28100	28100-27020	Starter Assy
28100	28100-27050	Starter Assy
28110	28110-27020	Housing Assy, Starter Drive
28110	28110-27030	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28113	28113-15011	Lever, Starter Pinion Drive
28119	28199-77090	Cover, Starter End Frame
28120	28120-26070	Yoke Assy, Starter
28120	28120-26071	Yoke Assy, Starter
28120	28120-26140	Yoke Assy, Starter
28130	28130-26070	Frame Assy, Starter Commutator End
28130	28130-37010	Frame Assy, Starter Commutator End
28131	90099-10134	Bearing, Starter Flange
28133	28132-15010	Cover, Starter Bearing(For Drive Housing)
28133	28132-15011	Cover, Bearing(For End Frame)
28136	28136-15010	Plate, Starter Lock
28138	28138-15010	Rubber(For Starter Bearing Cover)
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-26070	Holder Assy, Starter Brush
28150	28150-15012	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28150	28150-27051	Switch Assy, Magnet Starter
28153	28159-15010	Cover, Magnet Switch
28160	28160-15010	Armature Assy, Starter
28160	28160-26070	Armature Assy, Starter
28160	28160-26071	Armature Assy, Starter
28162	28162-15010	Spring, Starter Brake
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
2813826140	28138-26140	Rubber(for Starter Bearing Cover)
2813826142	28138-26142	Rubber(for Starter Bearing Cover)
9009900926	90099-00926	New Genuine Part
9009901467	90099-01467	New Genuine Part
9009904272	90099-04272	New Genuine Part
9009904921	90099-04921	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905148	90099-05148	New Genuine Part
9009912405	90099-12405	New Genuine Part
9161141035	91611-41035	New Genuine Part
9161141035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161141040	91611-41040	Bolt(for Transaxle Case & Engine Setting)
9161141040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161141050	91611-41050	Bolt(for Transaxle & Engine Setting)
9161141050	91612-61050	Bolt(For Transaxle & Engine Setting)
9161141055	91611-41055	Bolt(For Clutch Release Cylinder Setting)
9161141055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-15010	Clutch Sub-Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28011-26042	Clutch Sub-Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28100-27020	Starter Assy	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28100-27050	Starter Assy	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28110-27020	Housing Assy, Starter Drive	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28110-27030	Housing Assy, Starter Drive	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28111-51011	Bush(For Starter Housing)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28113-15011	Lever, Starter Pinion Drive	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28120-26070	Yoke Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28120-26071	Yoke Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28120-26140	Yoke Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28130-26070	Frame Assy, Starter Commutator End	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28130-37010	Frame Assy, Starter Commutator End	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28132-15010	Cover, Starter Bearing(For Drive Housing)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28132-15011	Cover, Bearing(For End Frame)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28136-15010	Plate, Starter Lock	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28138-15010	Rubber(For Starter Bearing Cover)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28138-26140	Rubber(for Starter Bearing Cover)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28138-26142	Rubber(for Starter Bearing Cover)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28140-15010	Holder Assy, Starter Brush	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28140-26070	Holder Assy, Starter Brush	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28150-15012	Switch Assy, Magnet Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28150-27051	Switch Assy, Magnet Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28150-37011	Switch Assy, Magnet Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28159-15010	Cover, Magnet Switch	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28160-15010	Armature Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28160-26070	Armature Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28160-26071	Armature Assy, Starter	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28162-15010	Spring, Starter Brake	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
28199-77090	Cover, Starter End Frame	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-00926	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-01467	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-04272	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-04921	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-05118	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-05148	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-10134	Bearing, Starter Flange	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
90099-12405	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91611-41035	New Genuine Part	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91611-41040	Bolt(for Transaxle Case & Engine Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91611-41050	Bolt(for Transaxle & Engine Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91611-41055	Bolt(For Clutch Release Cylinder Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
91612-61050	Bolt(For Transaxle & Engine Setting)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
94110-40800	Nut(For Steering Damper)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
94511-00800	WASHERSPRING	Starter ([10.1979 - ] (7910- )13TU,4KJ,2TJ)
