TR15

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,686 parts · 166 categories
TR15 ×

← Back to categories

3,686 items

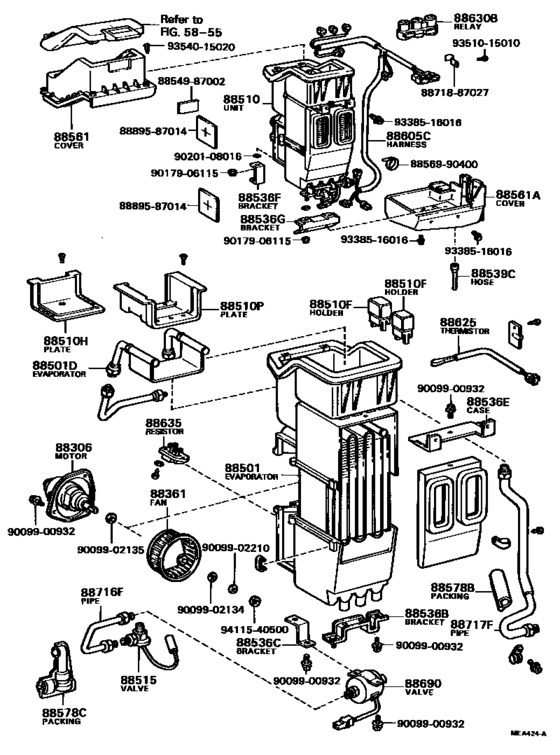

Heating & Air Conditioning - Cooler Unit ([01.1981 - ] (8101- )TR15) 54
#OEMPart name
88306 87104-87004 Motor Sub-Assy, Cooler Blower, No.1
88361 87105-14030 Fan Sub-Assy, Heater Blower
88501 88501-87003 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87004 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87005 Evaporator Sub-Assy, Cooler, No.2
88510 88510-87008 Unit Assy, Cooler
88510 88510-87009 Unit Assy, Cooler
88510 82630-87002 Holder, Fuse
88510 82630-87003 Holder, Fuse
88510 82630-87005 Holder, Fuse
88510 88891-87004 Plate, Cooler Unit, No.1
88510 88891-87005 Plate, Cooler Unit, No.2
88515 88515-20040 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88536 88536-87010 Bracket, Cooling Unit, No.3
88536 88536-87011 Bracket, Cooling Unit, No.4
88536 88536-87012 Bracket, Cooling Unit, No.5
88536 88688-87006 Bracket, Cooling Unit, No.6
88536 88688-87008 Bracket, Cooling Unit, No.7
88539 88539-87002 Hose, Cooler Unit Drain, No.2
88539 88539-95701 Hose, Cooler Unit Drain, No.1
88561 88896-87006 Cover, Cooler Unit
88561 88894-87001 Cover, Cooler Unit, A
88578 88578-12100 Packing, Cooling Unit, No.1
88578 88578-30360 Packing, Cooler Pipe, No.1
88578 88578-20060 Packing, Cooling Unit, No.2
88605 88605-87014 Harness Sub-Assy, Cooler Wiring, No.2
88605 88605-87020 Harness Sub-Assy, Cooler Wiring, No.2
88625 88625-12050 Thermistor, Cooler, No.1
88625 88625-87001 Thermistor, Cooler, No.1
88625 88625-20040 Thermistor, Cooler, No.1
88630 88630-95702 Relay, Heater Radiator
88630 88630-95A01 Relay Assy, Cooler
88630 88630-95704 Relay Assy, Cooler
88635 87138-12090 Resistor, Heater Blower
88690 88691-95701 Valve Assy, Cooler Magnet
88690 88691-95A02 Valve Assy, Cooler Magnet
88716 88716-87018 Pipe, Cooler Refrigerant Liquid, F
88716 88716-87019 Pipe, Cooler Refrigerant Liquid, F
88717 88717-87012 Pipe, Cooler Refrigerant Suction, F
8854987002 88549-87002 Plate, Caution
8856990400 88569-90400 Clamp (for Cooler Relay)
8871887027 88718-87027 Pipe, Cooler Refrigerant Suction, No.2
8889587014 88895-87014 Holder, Fuse
9009900932 90099-00932 New Genuine Part
9009902134 90099-02134 New Genuine Part
9009902135 90099-02135 New Genuine Part
9009902210 90099-02210 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9020108016 90201-08016 New Genuine Part
9338516016 93385-16016 New Genuine Part
9351015010 93510-15010 New Genuine Part
9354015020 93540-15020 Screw
9411540500 94115-40500 Nut(For Lpg Filter Stud Bolt Set)
