TR15

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,686 parts · 166 categories

3,686 items

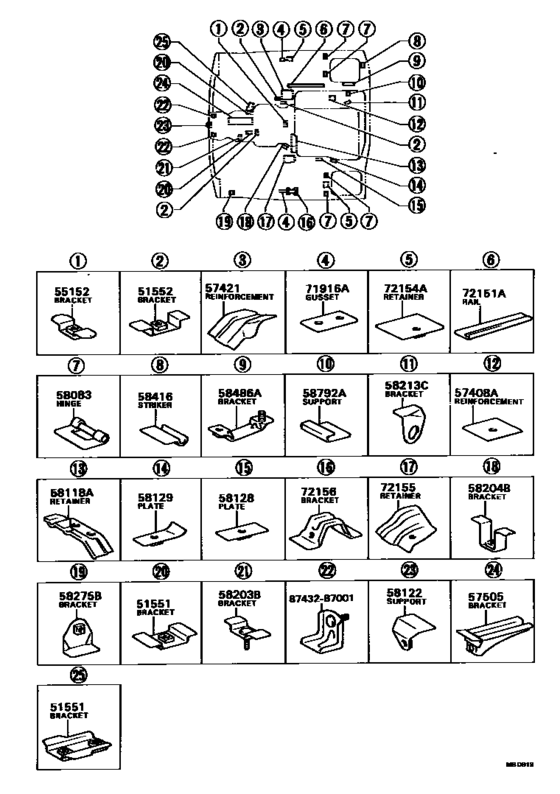

Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#) 22

#	OEM	Part name
51551	51551-87001	Bracket, Tube Clamp, No.1
51551	51551-87002	Bracket, Tube Clamp, No.1
51552	51552-87001	Bracket, Tube Clamp, No.2
55152	55152-87701	Bracket, 3 Way Attaching
55152	55152-87001	Bracket, 3 Way Attaching
57421	57421-87001	Reinforcement, Front Floor, No.1
57505	57505-87001	Bracket Sub-Assy, Parking Brake, No.1
58083	58083-87001	Hinge Sub-Assy, Battery Service Cover, Male
58083	58083-87002	Hinge Sub-Assy, Battery Service Cover, Male
58118	58118-87001	Retainer, Engine Service Hole
58122	58122-87001	Support, Front Panel Lower Seat
58128	58128-87001	Plate, Front Floor, No.1
58129	58129-87001	Plate, Front Floor, No.2
58203	58203-87001	Bracket Sub-Assy, Heater Hose Clamp, No.1
58204	58204-95700	Bracket Sub-Assy,heater Hose Clamp, No.2
58275	58275-87501	Bracket, Air Cleaner, Rear
58486	58486-87001	Bracket, Vacuum Switching Valve
71916	71916-87301	Gusset, Catch Center Seat
72154	72154-87001	Retainer, Seat Truck, No.2
72155	72155-87001	Retainer, Seat Set
72156	72156-87001	Bracket, Front Seat, Lh Under
8743287001	87432-87001	Bracket, Combustion Heater, No.2

OEM	Part name	Category
51551-87001	Bracket, Tube Clamp, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
51551-87002	Bracket, Tube Clamp, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
51552-87001	Bracket, Tube Clamp, No.2	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
55152-87001	Bracket, 3 Way Attaching	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
55152-87701	Bracket, 3 Way Attaching	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
57421-87001	Reinforcement, Front Floor, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
57505-87001	Bracket Sub-Assy, Parking Brake, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58083-87001	Hinge Sub-Assy, Battery Service Cover, Male	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58083-87002	Hinge Sub-Assy, Battery Service Cover, Male	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58118-87001	Retainer, Engine Service Hole	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58122-87001	Support, Front Panel Lower Seat	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58128-87001	Plate, Front Floor, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58129-87001	Plate, Front Floor, No.2	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58203-87001	Bracket Sub-Assy, Heater Hose Clamp, No.1	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58204-95700	Bracket Sub-Assy,heater Hose Clamp, No.2	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58275-87501	Bracket, Air Cleaner, Rear	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
58486-87001	Bracket, Vacuum Switching Valve	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
71916-87301	Gusset, Catch Center Seat	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
72154-87001	Retainer, Seat Truck, No.2	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
72155-87001	Retainer, Seat Set	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
72156-87001	Bracket, Front Seat, Lh Under	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
87432-87001	Bracket, Combustion Heater, No.2	Front Floor Panel & Front Floor Member ([02.1982 - ] (8202- )KR12,TR1#)
