TR15

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,686 parts · 166 categories
TR15 ×

← Back to categories

3,686 items

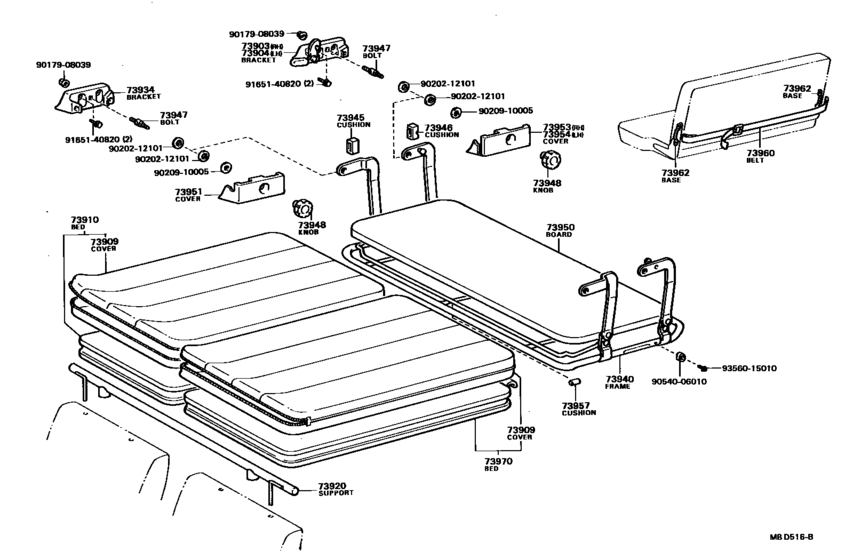

Bed & Shelf ([01.1982 - ] (8201- )CNP) 26
#OEMPart name
73903 73903-87001 Bracket Sub-Assy, Rear Shelf, Rh
73904 73904-87001 Bracket Sub-Assy, Rear Shelf, Lh
73909 73909-87001 Cover Sub-Assy, Rear Bed
73909 73909-87002 Cover Sub-Assy, Rear Bed
73910 73910-87001 Bed Assy, Rear Rh
73920 73920-87001 Support Assy, Rear Bed
73934 73934-87001 Bracket, Rear Shelf
73940 73940-87001 Frame Assy, Rear Shelf
73945 73945-87001 Cushion, Rear Shelf Link No.1
73946 73946-87001 Cushion, Rear Shelf Link No.2
73947 73947-95700 Bolt, Rear Shelf
73948 73948-87001 Knob, Rear Shelf Link
73950 73950-87001 Board Assy, Rear Shelf
73951 73951-87001 Cover, Rear Shelf, No.1
73953 73953-87001 Cover, Rear Shelf, No.2 Rh
73954 73954-87001 Cover, Rear Shelf, No.2 Lh
73957 73957-87001 Cushion, Rear Shelf Bar
73960 73960-87001 Belt Assy, Rear Bed Holder
73962 73962-87001 Base, Rear Bed Holder
73970 73970-87001 Bed Assy, Rear Lh
9017908039 90179-08039 New Genuine Part
9020212101 90202-12101 New Genuine Part
9020910005 90209-10005 New Genuine Part
9054006010 90540-06010 New Genuine Part
9165140820 91651-40820 Bolt
9356015010 93560-15010 New Genuine Part
