Search › Model › TR15

TR15

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1978 · 3,686 parts · 166 categories

3,686 items

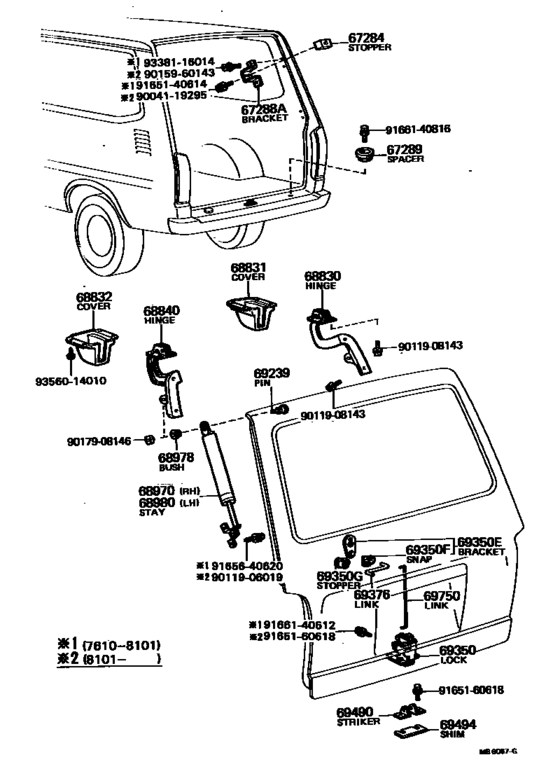

Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#) 39

#	OEM	Part name
67284	69463-87001	Stopper, Back Door, No.2
67288	69462-87002	Bracket, Back Door Side Stopper, Upper
67289	69452-87001	Spacer, Back Door Side Stopper, Lower
67289	69463-87002	Stopper, Back Door Side Male
68830	68810-87001	Hinge Assy, Back Door, Rh
68830	68810-87002	Hinge Assy, Back Door, Rh
68830	68810-87003	Hinge Assy, Back Door, Rh
68831	68851-87002	Cover, Back Door Hinge Upper, Rh
68832	68852-87002	Cover, Back Door Hinge Upper, Lh
68840	68820-87002	Hinge Assy, Back Door, Lh
68840	68820-87003	Hinge Assy, Back Door, Lh
68970	68950-87002	Stay Assy, Back Door, Rh
68970	68950-87004	Stay Assy, Back Door, Rh
68970	68950-87009	Stay Assy, Back Door, Rh
68978	90386-11001	Bush, Back Door Stay Handle
69239	68961-87001	Pin, Back Door Outside Handle
69350	69350-87002	Lock Assy, Back Door
69350	69307-87001	Bracket Sub-Assy, Control Rod
69350	69377-30020	Snap, Door Lock Control Rod
69350	69379-87001	Stopper, Control Rod Bracket
69376	69766-87001	Link, Back Door Lock
69490	69430-87001	Striker Assy, Back Door Lock
69494	69469-87001	Shim, Back Door Lock Striker
69494	69469-87002	Shim, Back Door Lock Striker
69750	69764-87003	Link Sub-Assy, Back Door Remote Control
69750	69764-87004	Link Sub-Assy, Back Door Remote Control
9004119295	90041-19295	New Genuine Part
9011906019	90119-06019	New Genuine Part
9011908143	90119-08143	New Genuine Part
9015960143	90159-60143	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9165140614	91651-40614	Bolt
9165160618	91651-60618	Bolt(For Oil Receiver Pipe)
9165640620	91656-40620	Bolt(For Oil Receiver Pipe)
9166140612	91661-40612	New Genuine Part
9166140816	91661-40816	New Genuine Part
9338116014	93381-16014	New Genuine Part
9356014010	93560-14010	SCREW

OEM	Part name	Category
68810-87001	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68810-87002	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68810-87003	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68820-87002	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68820-87003	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68851-87002	Cover, Back Door Hinge Upper, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68852-87002	Cover, Back Door Hinge Upper, Lh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68950-87002	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68950-87004	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68950-87009	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
68961-87001	Pin, Back Door Outside Handle	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69307-87001	Bracket Sub-Assy, Control Rod	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69350-87002	Lock Assy, Back Door	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69377-30020	Snap, Door Lock Control Rod	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69379-87001	Stopper, Control Rod Bracket	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69430-87001	Striker Assy, Back Door Lock	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69452-87001	Spacer, Back Door Side Stopper, Lower	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69462-87002	Bracket, Back Door Side Stopper, Upper	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69463-87001	Stopper, Back Door, No.2	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69463-87002	Stopper, Back Door Side Male	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69469-87001	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69469-87002	Shim, Back Door Lock Striker	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69764-87003	Link Sub-Assy, Back Door Remote Control	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69764-87004	Link Sub-Assy, Back Door Remote Control	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
69766-87001	Link, Back Door Lock	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90041-19295	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90119-06019	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90119-08143	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90159-60143	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90179-08146	Nut	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90179-08204	Nut	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
90386-11001	Bush, Back Door Stay Handle	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
91651-40614	Bolt	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
91651-60618	Bolt(For Oil Receiver Pipe)	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
91656-40620	Bolt(For Oil Receiver Pipe)	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
91661-40612	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
91661-40816	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
93381-16014	New Genuine Part	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)
93560-14010	SCREW	Back Door Lock & Hinge ([10.1976 - ] (7610- )KR1#,TR1#)

Source: Public OEM parts-catalog data
Variants: 2 / 26
Category: 166
Collected: 2026-08-04
