Search › Model › TGN61

TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

4,218 items

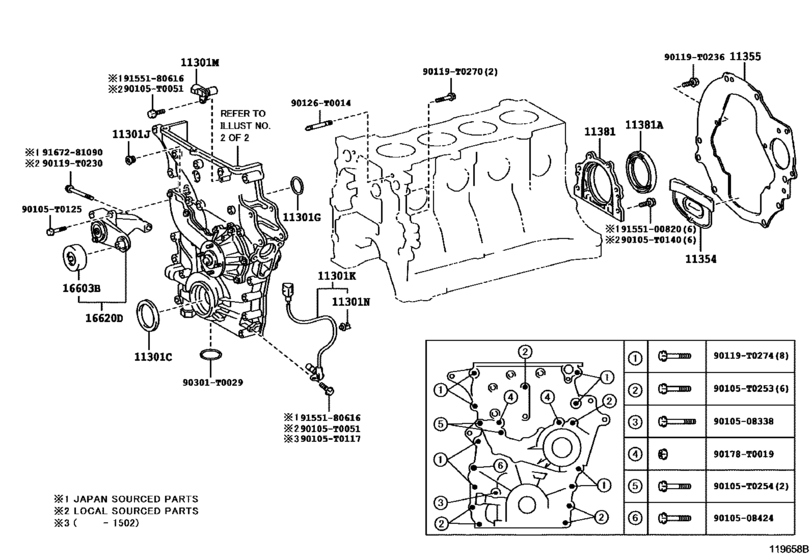

Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE) 40

#	OEM	Part name
11301	90311-T0032	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-T0061	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-T0060	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90301-T0021	Ring, O(For Timing Gear Case, Upper)
11301	90341-T0011	Plug, W/head Straight Screw(For Timing Gear Case)
11301	90919-05059	Sensor, Crank Position
11301	90919-05036	Sensor, Cam Position
11301	90469-07018	Clamp
11354	11354-0C020	Seal, Flywheel Housing Dust
11354	11354-0C010	Seal, Flywheel Housing Dust
11355	11355-0C010	Plate, Rear End
11381	11381-0C011	Retainer, Engine Rear Oil Seal
11381	11381-0C012	Retainer, Engine Rear Oil Seal
11381	90311-T0026	Seal, Engine Rear Oil
11381	90311-T0059	Seal, Engine Rear Oil
11381	90311-T0058	Seal, Engine Rear Oil
11381	11381-75011	Retainer, Engine Rear Oil Seal
11381	11381-75012	Retainer, Engine Rear Oil Seal
16603	16603-0C030	Pulley Sub-Assy, Idler
16603	16603-0C020	Pulley Sub-Assy, Idler
16620	16620-0C020	Tensioner Assy, V-Ribbed Belt
16620	16620-0C011	Tensioner Assy, V-Ribbed Belt
90105	90105-T0051	New Genuine Part
90105	90105-T0117	BOLT FLANGE
90105	90105-T0125	Bolt(For Alternator)
90105	90105-T0140	New Genuine Part
90105	90105-T0253	BOLT, FLANGE
90105	90105-T0254	BOLT, FLANGE
90119	90119-T0230	New Genuine Part
90119	90119-T0236	New Genuine Part
90119	90119-T0270	BOLT, WWASHER
90119	90119-T0274	New Genuine Part
90126	90126-T0014	New Genuine Part
90178	90178-T0019	Nut (For Connecting Rod Swivel)
90301	90301-T0029	RING O
9010508338	90105-08338	BOLT WASHER BASED
9010508424	90105-08424	New Genuine Part
9155100820	91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)
9155180616	91551-80616	BOLT FLANGE
9167281090	91672-81090	New Genuine Part

OEM	Part name	Category
11354-0C010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11354-0C020	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11355-0C010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11381-0C011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11381-0C012	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11381-75011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
11381-75012	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
16603-0C020	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
16603-0C030	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
16620-0C011	Tensioner Assy, V-Ribbed Belt	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
16620-0C020	Tensioner Assy, V-Ribbed Belt	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-08338	BOLT WASHER BASED	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-08424	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0051	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0117	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0125	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0140	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0253	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90105-T0254	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90119-T0230	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90119-T0236	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90119-T0270	BOLT, WWASHER	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90119-T0274	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90126-T0014	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90178-T0019	Nut (For Connecting Rod Swivel)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90301-T0021	Ring, O(For Timing Gear Case, Upper)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90301-T0029	RING O	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0026	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0032	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0058	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0059	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0060	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90311-T0061	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90341-T0011	Plug, W/head Straight Screw(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90469-07018	Clamp	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90919-05036	Sensor, Cam Position	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
90919-05059	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
91551-00820	Bolt, Hexagon (For Rear Spring Seat Bolt)	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
91551-80616	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
91672-81090	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.2014 - ] (1412- )2TRFE)
