TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

4,218 items

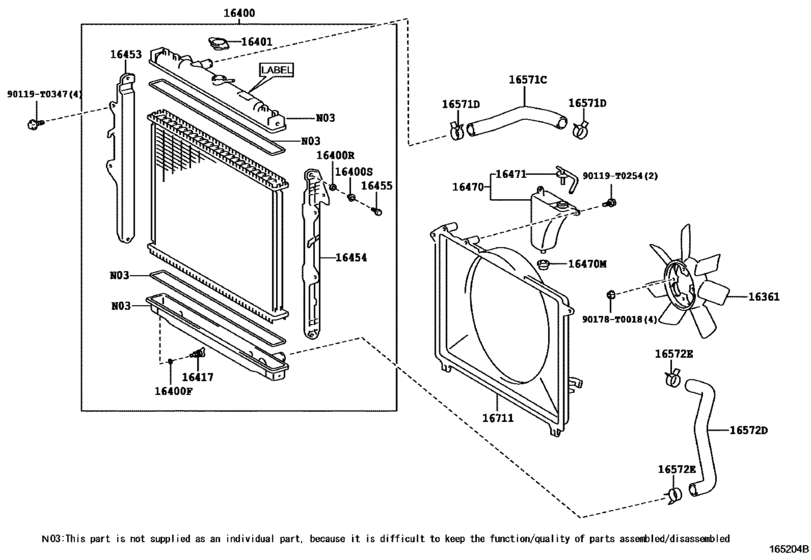

Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC) 25

#	OEM	Part name
16361	16361-0C011	Fan
16400	16400-0C210	Radiator Assy
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	16444-75180	Bushing(For Radiator)
16400	16445-0C180	Collar(For Radiator)
16401	16401-0C030	Cap Sub-Assy, Radiator
16401	16401-0K040	Cap Sub-Assy, Radiator
16401	16401-0H060	Cap Sub-Assy, Radiator
16417	16417-0C180	Cock Sub-Assy, Radiator Drain
16417	16417-21280	Cock Sub-Assy, Radiator Drain
16453	16453-0C200	Plate, Radiator Side
16454	16454-0C200	Plate, Radiator Side
16455	91651-B0820	Bolt, Radiator Side Support Plate
16455	90080-11347	New Genuine Part
16470	16470-0C050	Tank Assy, Radiator Reserve
16470	90480-T0003	Grommet
16471	16405-0C030	Cap Sub-Assy, Reserve Tank
16571	16571-0C090	Hose, Radiator, No.1
16571	90466-T0028	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90466-T0011	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0C080	Hose, Radiator, No.2
16711	16711-0C100	Shroud, Fan
90119	90119-T0254	New Genuine Part
90119	90119-T0347	BOLT WWASHER
90178	90178-T0018	NUT FLANGE

OEM	Part name	Category
16361-0C011	Fan	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16400-0C210	Radiator Assy	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16401-0C030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16401-0H060	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16401-0K040	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16405-0C030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16417-0C180	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16444-75180	Bushing(For Radiator)	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16445-0C180	Collar(For Radiator)	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16453-0C200	Plate, Radiator Side	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16454-0C200	Plate, Radiator Side	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16470-0C050	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16571-0C090	Hose, Radiator, No.1	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16572-0C080	Hose, Radiator, No.2	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
16711-0C100	Shroud, Fan	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90080-11347	New Genuine Part	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90119-T0254	New Genuine Part	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90119-T0347	BOLT WWASHER	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90178-T0018	NUT FLANGE	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90466-T0011	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90466-T0028	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
90480-T0003	Grommet	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([07.2011 - ] (1107- )2TRFE..TGN61..4FC ; (1107- )2TRFE. .TGN51..4FC..CO ; (1107- )2TRFE. .TGN61..5F..GCC)
