TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

4,218 items

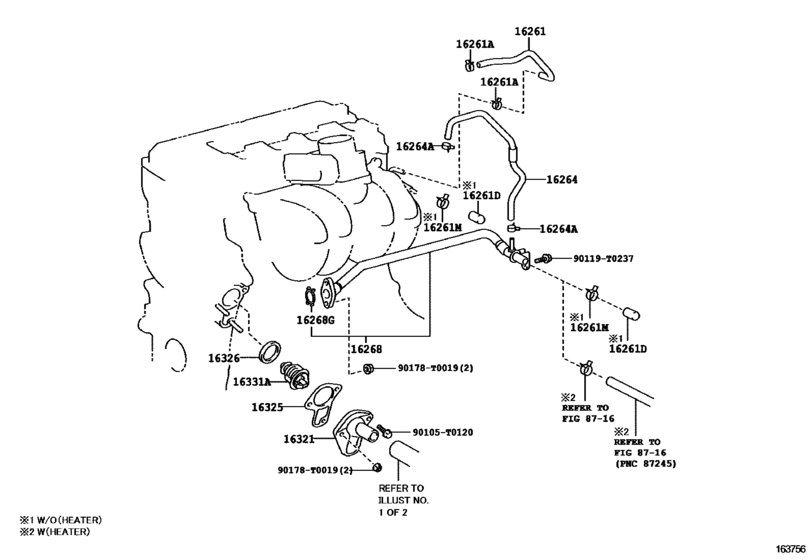

Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN) 22

#	OEM	Part name
16261	16261-0C010	Hose, Water By-Pass
16261	90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-0C030	Hose, Water By-Pass, No.2
16268	16268-0C020	Pipe, Water By-Pass, No.1
16268	16268-0C021	Pipe, Water By-Pass, No.1
16268	90178-T0030	New Genuine Part
16268	16268-75091	Pipe, Water By-Pass, No.1 (replaced to metal pipe)
16268	16258-75010	Gasket(For Water By-Pass Pipe)
16268	16258-75021	Gasket(For Water By-Pass Pipe)
16321	16321-0C010	Inlet, Water
16321	16321-75020	Inlet, Water
16325	16325-0C020	Gasket, Water Inlet Housing, No.1
16325	16325-0C021	Gasket, Water Inlet Housing, No.1
16325	16325-75011	Gasket, Water Inlet Housing, No.1
16326	16325-0C030	Gasket, Water Inlet Housing, No.2
16326	16325-76010	Gasket, Water Inlet Housing, No.1
16331	90916-03093	Thermostat
90105	90105-T0120	BOLT FLANGE
90119	90119-T0237	BOLT WWASHER
90178	90178-T0019	Nut (For Connecting Rod Swivel)

OEM	Part name	Category
16258-75010	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16258-75021	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16261-0C010	Hose, Water By-Pass	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16264-0C030	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16268-0C020	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16268-0C021	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16268-75091	Pipe, Water By-Pass, No.1 (replaced to metal pipe)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16321-0C010	Inlet, Water	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16321-75020	Inlet, Water	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16325-0C020	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16325-0C021	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16325-0C030	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16325-75011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
16325-76010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90105-T0120	BOLT FLANGE	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90119-T0237	BOLT WWASHER	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90178-T0019	Nut (For Connecting Rod Swivel)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90178-T0030	New Genuine Part	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90466-T0015	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
90916-03093	Thermostat	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
96137-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([07.2011 - 03.2013] (1107-1302)2TRFE..SUVW..GCC,GEN,IDN,PHL,TH ; (11 07-1303)2TRFE..IDSUV ; (1107-1303)2 TRFE..CO,EPT,LA,M A,PKN,SA,VN)
