Search › Model › TGN61

TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

4,218 items

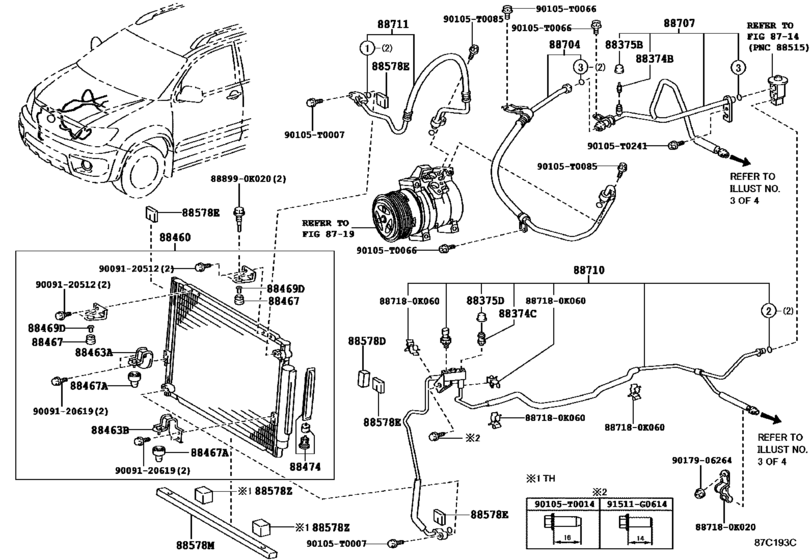

Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN) 29

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30290	Cap, Service Valve (For Cooler Pipe)
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88460	88460-0K040	Condenser Assy, Cooler
88463	88463-0K250	Bracket, Cooler Condenser, No.2
88463	88463-0K260	Bracket, Cooler Condenser, No.3
88467	88467-12180	Cushion, Cooler Condenser, No.1
88467	88467-28040	Cushion, Cooler Condenser, No.1
88469	88469-52010	Collar, Condenser Bracket, No.1
88474	88474-17010	Dryer, Cooler
88578	88578-0K110	Packing, Cooler Pipe, No.1
88578	88578-0K100	Packing, Cooler Pipe, No.2
88578	88578-0K081	Packing, Cooling Pipe, No.3
88704	88704-0K091	Hose Sub-Assy, Suction
88707	88707-0K230	Pipe Sub-Assy, Suction
88710	88710-0K080	Tube Assy, Air Conditioner - AIRCONDITIONER
88711	88711-0K161	Hose, Cooler Refrigerant Discharge, No.1
90105	90105-T0007	BOLT FLANGE
90105	90105-T0014	BOLT FLANGE
90105	90105-T0066	BOLT FLANGE
90105	90105-T0085	BOLT FLANGE
90105	90105-T0241	BOLTFLANGE
91511	91511-G0614	BOLTFLANGE
887180	88718-0K020	Pipe, Cooler Refrigerant Suction, No.2
887180	88718-0K060	Pipe, Cooler Refrigerant Suction, No.2
888990	88899-0K020	Cover, Evaporator
9009120512	90091-20512	BOLT WWASHER
9009120619	90091-20619	BOLT
9017906264	90179-06264	NUT, WWASHER

OEM	Part name	Category
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88460-0K040	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88463-0K250	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88463-0K260	Bracket, Cooler Condenser, No.3	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88467-12180	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88467-28040	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88469-52010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88474-17010	Dryer, Cooler	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88578-0K081	Packing, Cooling Pipe, No.3	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88578-0K100	Packing, Cooler Pipe, No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88578-0K110	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88704-0K091	Hose Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88707-0K230	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88710-0K080	Tube Assy, Air Conditioner - AIRCONDITIONER	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88711-0K161	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88718-0K020	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88718-0K060	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
88899-0K020	Cover, Evaporator	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90091-20512	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90105-T0007	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90105-T0014	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90105-T0066	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90105-T0085	BOLT FLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90105-T0241	BOLTFLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
90179-06264	NUT, WWASHER	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)
91511-G0614	BOLTFLANGE	Heating & Air Conditioning - Cooler Piping ([02.2012 - ] FRONT(DUAL AIR CONDITIONER) (1107- )TGN51,61..SUVW..GEN,IDN,KZS,PHL,PKN,T H ; (1202- )TGN51,61..VN)

Source: Public OEM parts-catalog data
Variants: 2 / 29
Category: 239
Collected: 2026-08-03
