TGN61

Toyota FORTUNER · 2005 · 4,218 parts · 239 categories

← Back to categories

4,218 items

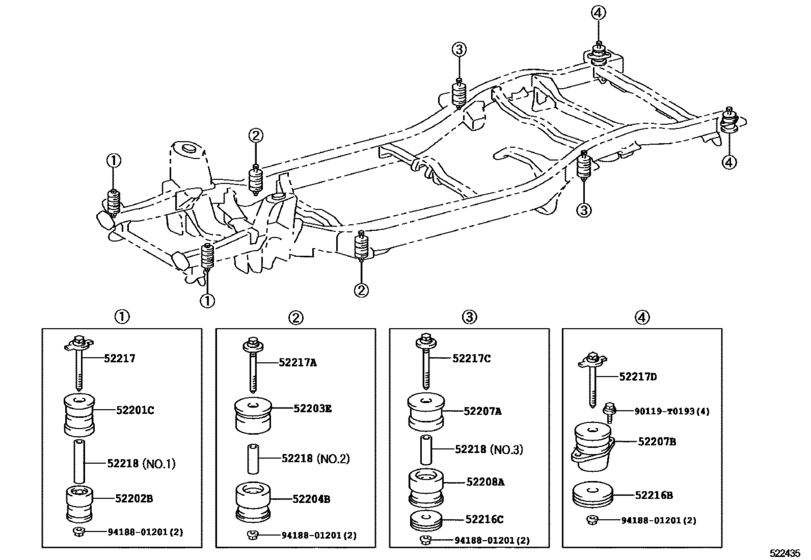

Cab Mounting & Body Mounting ([07.2011 - ] (1107- )) 19

#	OEM	Part name
52201	52201-0K050	Cushiion Sub-Assy, Cab Mounting, No.1 Upper
52201	52201-0K010	Cushiion Sub-Assy, Cab Mounting, No.1 Upper
52202	52202-0K050	Cushiion Sub-Assy, Cab Mounting, No.1 Lower
52202	52202-0K010	Cushiion Sub-Assy, Cab Mounting, No.1 Lower
52203	52203-0K040	Cushion Sub-Assy, Cab Mounting, No.2
52204	52204-0K040	Cushion Sub-Assy, Cab Mounting, No.2 Lower
52207	52205-0K070	Cushion Sub-Assy, Cab Mounting, No.4 Upper
52207	52207-0K010	Cushion Sub-Assy, Cab Mounting, Rear
52208	52206-0K070	Cushion Sub-Assy, Cab Mounting, No.4 Lower
52216	52216-0K020	Stopper, Front Suspension Member Body Mounting, Rear
52217	52217-0K010	Bolt, Body Mounting
52217	52217-0K020	Bolt, Body Mounting
52217	52217-0K050	Bolt, Body Mounting
52217	52217-0K060	Bolt, Body Mounting
52218	52218-0K010	Holder, Body Mount Bolt Spacer, No.1
52218	52219-0K010	Holder, Body Mount Bolt Spacer, No.1
52218	52219-KK020	HOLDER, CAB MOUNTING
90119	90119-T0193	BOLT WWASHER
9418801201	94188-01201	NUT LOCK

OEM	Part name	Category
52201-0K010	Cushiion Sub-Assy, Cab Mounting, No.1 Upper	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52201-0K050	Cushiion Sub-Assy, Cab Mounting, No.1 Upper	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52202-0K010	Cushiion Sub-Assy, Cab Mounting, No.1 Lower	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52202-0K050	Cushiion Sub-Assy, Cab Mounting, No.1 Lower	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52203-0K040	Cushion Sub-Assy, Cab Mounting, No.2	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52204-0K040	Cushion Sub-Assy, Cab Mounting, No.2 Lower	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52205-0K070	Cushion Sub-Assy, Cab Mounting, No.4 Upper	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52206-0K070	Cushion Sub-Assy, Cab Mounting, No.4 Lower	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52207-0K010	Cushion Sub-Assy, Cab Mounting, Rear	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52216-0K020	Stopper, Front Suspension Member Body Mounting, Rear	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52217-0K010	Bolt, Body Mounting	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52217-0K020	Bolt, Body Mounting	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52217-0K050	Bolt, Body Mounting	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52217-0K060	Bolt, Body Mounting	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52218-0K010	Holder, Body Mount Bolt Spacer, No.1	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52219-0K010	Holder, Body Mount Bolt Spacer, No.1	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
52219-KK020	HOLDER, CAB MOUNTING	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
90119-T0193	BOLT WWASHER	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
94188-01201	NUT LOCK	Cab Mounting & Body Mounting ([07.2011 - ] (1107- ))
